nvals = np.arange(1,21)
ch = np.zeros(20)
for k in nvals:
ch[k-1] = np.linalg.cond(hilbert(k))
plt.semilogy(nvals,ch)
9 Orthogonally diagonalisable matrices. Condition numbers.
When solving the system \(A\mathbf{x}=\mathbf{b}\) on a computer, the matrix \(A\) and the right hand side \(\mathbf{b}\) will typically be subject to measurement- and round-off errors. The computer will therefore actually be served a problem on the form \[(A+E)\mathbf{y}=\mathbf{b}+\mathbf{e},\] where \(E\)/\(\mathbf{e}\) is a matrix/vector with small components, and which represent a deviation from the actual coefficient matrix/right hand side. In this chapter we will assume for simplicity that there is no round-off errors in the coefficient matrix, so that \(E=0\). We will ask ourselves the following question: How does the error \(\mathbf{e}\) in the right hand side propagate to the solution of the system? Are there any cases where even a small error \(\mathbf{e}\) will propagate to a large error between the solutions \(\mathbf{x}\) and \(\mathbf{y}\)? Such behaviour is clearly not desirable, since it would make us vulnerable to small errors.
To illustrate that such a behaviour actually is possible, set \[A=\frac{1}{2}\begin{pmatrix}1+\epsilon & 1-\epsilon \\ 1-\epsilon & 1+\epsilon\end{pmatrix},\] where \(\epsilon\) is a number we will experiment with. Consider the system \(A\mathbf{x}=\mathbf{b}\), where \(\mathbf{b}=\begin{pmatrix}1 \\ 1\end{pmatrix}\). It is easy to show that the exact solution is \(\mathbf{x}= \begin{pmatrix}1 \\ 1 \end{pmatrix}\) for all \(\epsilon\). If there is a small error \(\mathbf{e}\), we would expect the solution of \(A\mathbf{y}=\mathbf{b}+\mathbf{e}\) to be near \(\mathbf{x}=(1,1)\), regardless of what \(\epsilon\) is. Let us check this with \(\mathbf{e}=10^{-3}\begin{pmatrix} 1 \\ -1 \end{pmatrix}\). In Exercise 9.4 you are asked to check that \(A\mathbf{y}=\mathbf{b}+\mathbf{e}\) has solution \[\mathbf{y}=\begin{pmatrix} 1 \\ 1 \end{pmatrix} + 10^{-3}\epsilon^{-1}\begin{pmatrix} 1 \\ -1 \end{pmatrix}.\] Something unexpected occurs here: When \(\epsilon\to 0\) we get very large solutions \(\mathbf{y}\), which get further and further away from \(\mathbf{x}\). What goes wrong here? The explanation we shall give is that \(A\) has a high condition number when \(\epsilon\to 0\). Put differently, when \(\epsilon\to 0\) the matrix \(A\) will be close to the matrix \(\frac{1}{2}\begin{pmatrix}1 & 1 \\ 1 & 1\end{pmatrix}\), which is not invertible. This is problematic since a system with a non-invertible matrix does not have a unique solution in general.
The behaviour above is best explained if we restrict ourselves to symmetric matrices. In the next section we will explain that all such matrices are what we call orthogonally diagonalisable, and this property will help us in our analysis.
9.1 Orthogonally diagonalisable matrices
In the factorisation of a diagonalisable matrix, one has the term \(P^{-1}\). If \(P\) also is orthogonal (i.e., \(P\) is real and \(P^{-1}=P^T\)) we have that \[A=PDP^T.\] Real matrices which can be written in this way are called orthogonally diagonalisable. Such matrices must be symmetric since \[ A^T=(PDP^T)^T=PD^TP^T=PDP^T=A. \] Since \(D=P^TAP\) and \(A\) and \(P\) are real, \(D\) is also real.
When \(P^{-1}=P^T\), the outer form of matrix multiplication gives \[
PDP^T = \sum_{k=1}^n \lambda_k P_{:k}(P_{:k})^T
\] Since the columns in \(P\) have length \(1\), this says that \(A\) can be written as a (weighted) sum of
projection matrices (see Example 2.10).
The spectral theorem says that, the other way, alle real symmetric matrices are orthogonally diagonalisable. To prove this is more difficult. First we prove the following.
Proposition 9.1 A real, symmetric \(n\times n\)-matrix \(A\) has only real eigenvalues, and all eigenvectors can be written on real form.
Proof. Let \(\mathbf{x},\mathbf{y}\in\mathbb{R}^n\). With the definition of the complex scalar product we get \[\begin{align*}
(A\mathbf{x})\cdot \mathbf{y} &= (A\mathbf{x})^T \overline{\mathbf{y}} = \mathbf{x}^T A^T \overline{\mathbf{y}}\\
\mathbf{x}\cdot (A\mathbf{y}) &= \mathbf{x}^T \overline{(A\mathbf{y})} = \mathbf{x}^T \overline{A} \overline{\mathbf{y}} = \mathbf{x}^T A \overline{\mathbf{y}}.
\end{align*}\] Since \(A=A^T\) we have equality here for all \(\mathbf{x},\mathbf{y}\), i.e.,
\[
(A\mathbf{x})\cdot \mathbf{y} = \mathbf{x}\cdot (A\mathbf{y}).
\tag{9.1}\] If here \(\mathbf{x}=\mathbf{y}\) and \(A\mathbf{x}=\lambda \mathbf{x}\) with \(\mathbf{x}\neq\mathbf{0}\), substitution in Equation 9.1 gives that \[\lambda|\mathbf{x}|^2=\overline{\lambda}|\mathbf{x}|^2.\] These two are equal if and only if \(\lambda=\overline{\lambda}\), so that \(\lambda\) is real. Row reduction of \(A-\lambda I\) now gives us that all eigenvectors can be written on real form.
We now need the following result, which is the one most difficult to prove
Theorem 9.1 A real, symmetric \(n\times n\)-matrix can be written on the form \[A=PRP^T,\] with \(P\) orthogonal, and \(R\) upper triangular.
The factorisation \(A=PRP^T\) with \(P\) orthogonal and \(R\) upper triangular is also called a Schur-factorisation. The theorem holds more generally, but we will only need the result for symmetric matrices.
Proof. For \(n=1\) this is obvious (choose \(P=1\)). Suppose now we have shown that all \((n-1)\times(n-1)\)-matrices have a Schur-factorisation. Let \(\mathbf{x}_1\) be an eigenvector for \(A\) corresponding to eigenvalue \(\lambda_1\). Let \(\mathbf{x}_1\) have length \(1\). We can assume that both \(\mathbf{x}_1\) and \(\lambda_1\) are real since \(A\) is symmetric. Extend \(\mathbf{x}_1\) to an orthonormal basis \(\{\mathbf{x}_1,\mathbf{x}_2,...,\mathbf{x}_n\}\) for \(\mathbb{R}^n\) (see Proposition 5.5), and set \[P_1=\begin{pmatrix} \mathbf{x}_1 & \mathbf{x}_2 & \cdots & \mathbf{x}_n \end{pmatrix}.\] \(P_1\) is orthogonal. We have that \[ P_1^TAP_1\mathbf{e}_1=P_1^TA\mathbf{x}_1=\lambda_1P_1^T\mathbf{x}_1=\lambda_1\mathbf{e}_1, \] so that \(P_1^TAP_1=\left(\begin{array}{c|c} \lambda_1 & \mathbf{a} \\ \hline \mathbf{0} & M \end{array}\right)\), where \(\mathbf{a}\) is a row vector with \(n-1\) components, and \(M\) is an \((n-1)\times(n-1)\) matrix. We then have that \[A = P_1 \left(\begin{array}{c|c} \lambda_1 & \mathbf{a} \\ \hline \mathbf{0} & M \end{array}\right) P_1^T.\] The matrix \(M\) is symmetric since \(A\) is, and by induction it is assumed to have a Schur factorisation \(M=P_0R_0P_0^T\), where \(P_0\) is orthogonal and \(R_0\) upper triangular. If we insert this we get \[\begin{align*} A &= P_1 \left(\begin{array}{c|c} \lambda_1 & \mathbf{a} \\ \hline \mathbf{0} & P_0R_0P_0^T \end{array}\right) P_1^T \\ &= P_1 \left(\begin{array}{c|c} 1 & \mathbf{0} \\ \hline \mathbf{0} & P_0 \end{array}\right) \left(\begin{array}{c|c} \lambda_1 & \mathbf{a}P_0 \\ \hline \mathbf{0} & R_0 \end{array}\right) \left(\begin{array}{c|c} 1 & 0 \\ \hline \mathbf{0} & P_0^T \end{array}\right) P_1^T \\ &= P_1 \left(\begin{array}{c|c} 1 & \mathbf{0} \\ \hline \mathbf{0} & P_0 \end{array}\right) \left(\begin{array}{c|c} \lambda_1 & \mathbf{a}P_0 \\ \hline \mathbf{0} & R_0 \end{array}\right) \left( P_1 \left(\begin{array}{c|c} 1 & \mathbf{0} \\ \hline \mathbf{0} & P_0 \end{array}\right) \right)^T. \end{align*}\] Since \(P_1 \left(\begin{array}{c|c} 1 & \mathbf{0} \\ \hline \mathbf{0} & P_0 \end{array}\right)\) is orthogonal (this is an exercise) and \(\left(\begin{array}{c|c} \lambda_1 & \mathbf{a}P_0 \\ \hline \mathbf{0} & R_0 \end{array}\right)\) is upper triangular, this is a Schur factorisation of \(A\).
If \(A=PRP^T\) is symmetric we have that \(PRP^T=PR^TP^T\), so that \(R=R^T\). But an upper triangular matrix which is symmetric must be diagonal, so that the Schur-factorisation in fact is an orthogonal diagonalisation. Real, symmetric matrices are also orthogonally diagonalisable, and since we started by saying that orthogonally diagonalisable matrices are symmetric, we have shown the following.
Theorem 9.2 (The spectral theorem) A real \(n\times n\)-matrix is orthogonally diagonalisable if and only if it is symmetric.
Let us summarise some other things as well. We know that, if \(A=PDP^T\), then column \(i\) in \(P\) is an eigenvector for \(A\) corresponding to \(\lambda_i\). Since the columns is \(P\) are orthonormal, it follows that the eigenspaces are orthogonal, and that the dimension of the eigenspace equals the multiplicity of the eigenvalue.
Theorem 9.3 A real symmetric \(n\times n\)-matrix
- has \(n\) real eigenvalues,
- has mutually orthogonal eigenspaces,
- has dimension of the eigenspace corresponding to \(\lambda\) equal to the multiplicity of \(\lambda\) as root in the characteristic equation.
We will have use for the following result.
Lemma 9.1 Suppose that \(A\) is real, symmetric, and invertible, and let \[|\lambda_1|\geq|\lambda_2|\geq\cdots\geq|\lambda_n|>0\] be the eigenvalues of \(A\) listed by descending absolute value. Then we have that \[ |\lambda_n||\mathbf{x}|\leq|A\mathbf{x}|\leq |\lambda_1||\mathbf{x}| \tag{9.2}\] for all \(\mathbf{x}\).
Since symmetric matrices are orthogonally diagonalisable we can write \(A=PDP^T\), where \(P\) is orthogonal. We have that \[ |A\mathbf{x}|^2 = | PDP^T\mathbf{x} |^2 = \mathbf{x}^T PDP^T PDP^T\mathbf{x} = (P^T\mathbf{x})^TD^2P^T\mathbf{x} = \mathbf{u}^TD^2\mathbf{u}, \] where we put \(\mathbf{u}=P^T\mathbf{x}\). We then get \[\begin{align*} \mathbf{u}^TD^2\mathbf{u} &= \sum_{i=1}^n \lambda_i^2u_i^2 \leq \lambda_1^2 \sum_{i=1} u_i^2 = \lambda_1^2|\mathbf{u}|^2= \lambda_1^2|\mathbf{x}|^2 \\ \mathbf{u}^TD^2\mathbf{u} &= \sum_{i=1}^n \lambda_i^2u_i^2 \geq \lambda_n^2 \sum_{i=1} u_i^2 = \lambda_n^2|\mathbf{u}|^2= \lambda_n^2|\mathbf{x}|^2, \end{align*}\] where we used that \(|\mathbf{u}|^2=\mathbf{x}^TPP^T\mathbf{x}=\mathbf{x}^T\mathbf{x}=|\mathbf{x}|^2\). By taking square roots it follows that \(|\lambda_n||\mathbf{x}|\leq|A\mathbf{x}|\leq |\lambda_1||\mathbf{x}|\).
9.2 Relative and absolute error
The discussion we started this chapter with had to do with the error we get when solving systems. It is therefore important to be precise with the concept of error. When talking about the error between two quantities it is natural to use the concept of relative error:
Definition 9.1 Suppose \(a\) and \(b\) are numbers. \(\left|\frac{b-a}{a}\right|\) is called the relative error between \(a\) and \(b\). If \(\mathbf{a}\) and \(\mathbf{b}\) more generally are vectors, we define the relative error between these as \(\frac{|\mathbf{b}-\mathbf{a}|}{|\mathbf{a}|}\).
Relative error says more about the size ratio between \(a\) and \(b\) that what the absolute error \(|b-a|\) does, since it does not change if we scale the numbers: Since \(\left|\frac{cb-ca}{ca}\right|=\left|\frac{b-a}{a}\right|\) for any \(c\neq0\), the relative error between \(a\) and \(b\) equals the relative error between \(ca\) and \(cb\). The same can not be said for the absolute error. Relative error also says something about how many decimals the numbers \(a\) and \(b\) have in common: If the relative error is about \(10^{-k}\), this means that approximately the \(k\) first decimal digits in \(a\) and \(b\) agree.
For the systems \(A\mathbf{x}=\mathbf{b}\) and \(A\mathbf{y}=\mathbf{b}+\mathbf{e}\) above there are two different relative errors:
- The relative error between the right hand sides of the system: \(| (\mathbf{b}+\mathbf{e}) - \mathbf{b}|/|\mathbf{b}| = |\mathbf{e}|/|\mathbf{b}|\).
- The relative error between the solutions: \(|\mathbf{y}-\mathbf{x}|/|\mathbf{x}|\).
The ration \[ \frac{ |\mathbf{y}-\mathbf{x}|/|\mathbf{x}| }{ |\mathbf{e}|/|\mathbf{b}| } \tag{9.3}\] between these say how much the relative error between the right hand sides will propagate to the solutions. If Equation 9.3 is about \(10^{-n}\), this means that approximately \(n\) decimal digits in precision can be lost when solving the perturbed system.
In the example above the relative error in 1. equals \(|\mathbf{e}|/|\mathbf{b}|=10^{-3}\). For the relative error in 2. we firtst obtain \[ \mathbf{y}-\mathbf{x}= \begin{pmatrix} 1 + 10^{-3}\epsilon^{-1} \\ 1 - 10^{-3}\epsilon^{-1} \end{pmatrix} - \begin{pmatrix} 1 \\ 1 \end{pmatrix} =10^{-3}\epsilon^{-1} \begin{pmatrix} 1 \\ -1 \end{pmatrix}, \] and then \(|\mathbf{y}-\mathbf{x}|/|\mathbf{x}|=10^{-3}\epsilon^{-1}\). The ‘’Propagation factor’’ Equation 9.3 is thus \(\epsilon^{-1}\). Since this number is large when \(\epsilon\) is small, the relative error in the right hand side of the system gets largely magnified when we compare the solutions.
9.3 Definition of condition numbers
In this section we will deduce a result which says how large the propagation factor Equation 9.3 can be. We will show the following.
Proposition 9.2 Suppose that \(A\) is symmetric and invertible, and let \[|\lambda_1|\geq|\lambda_2|\geq\cdots\geq|\lambda_n|>0\] be the eigenvalues of \(A\), listed by descending absolute value. Then we have that \[ \left|\frac{\lambda_n}{\lambda_1}\right| \frac{|\mathbf{e}|}{|\mathbf{b}|} \leq \frac{|\mathbf{y}-\mathbf{x}|}{|\mathbf{x}|} \leq \left|\frac{\lambda_1}{\lambda_n}\right| \frac{|\mathbf{e}|}{|\mathbf{b}|} \tag{9.4}\] Further we have that
- equality in the right inequality when \(\mathbf{e}\) is an eigenvector for \(\lambda_n\), and \(\mathbf{b}\) for \(\lambda_1\),
- equality in the left inequality when \(\mathbf{e}\) is an eigenvector for \(\lambda_1\), and \(\mathbf{b}\) for \(\lambda_n\).
If we define the condition number of \(A\) as \(K(A)=|\lambda_1/\lambda_n|\) then Equation 9.4 can be written \[ \frac{1}{K(A)} \frac{|\mathbf{e}|}{|\mathbf{b}|} \leq \frac{|\mathbf{y}-\mathbf{x}|}{|\mathbf{x}|} \leq K(A) \frac{|\mathbf{e}|}{|\mathbf{b}|} \tag{9.5}\] In Exercise 9.4 you found that the eigenvalues of \(A\) are \(\epsilon<1\) and \(1\), so that the condition number is \(K(A)=\epsilon^{-1}\). Note that
- the right inequality says that the relative error in the right hand side propagates maximally with a factor \(K(A)\) to the solutions,
- the left inequality can be rewritten as \(\frac{|\mathbf{e}|}{|\mathbf{b}|} \leq K(A)\frac{|\mathbf{y}-\mathbf{x}|}{|\mathbf{x}|}\). On this form it says that the relative error in \(\mathbf{x}\) propagates maximally with a factor \(K(A)\) under the matrix multiplication \(\mathbf{b}=A\mathbf{x}\).
Proof. of Proposition 9.2. We first get that \(A(\mathbf{y}-\mathbf{x})=\mathbf{e}\), so that \(\mathbf{y}-\mathbf{x}= A^{-1}\mathbf{e}\). If we apply Lemma 9.1 on this, and on \(A\mathbf{x}=\mathbf{b}\) we get that \[\begin{align*} |\lambda_n||\mathbf{x}| & \leq |\mathbf{b}| \leq |\lambda_1||\mathbf{x}| & \frac{1}{|\lambda_1|}|\mathbf{e}| &\leq |\mathbf{y}-\mathbf{x}| \leq |\mathbf{e}| \frac{1}{|\lambda_n|} \end{align*}\] Here we used that \(A^{-1}\) also is a symmetric matrix, with eigenvalues \(1/\lambda_n,...,1/\lambda_1\), listed by descending absolute value, see Exercise 9.6. If we combine these we get that \[\begin{align*} \left|\frac{\lambda_n}{\lambda_1}\right| \frac{|\mathbf{e}|}{|\mathbf{b}|} \leq \frac{|\mathbf{y}-\mathbf{x}|}{|\mathbf{x}|} \leq \left| \frac{\lambda_1}{\lambda_n} \right| \frac{|\mathbf{e}|}{|\mathbf{b}|} \end{align*}\] Further, there is equality in the right inequality when \(\mathbf{e}\) is an eigenvector for \(\lambda_n\), and \(\mathbf{b}\) is an eigenvector for \(\lambda_1\), and equality in the left inequality when \(\mathbf{e}\) is an eigenvector for \(\lambda_1\), and \(\mathbf{b}\) is an eigenvector for \(\lambda_n\).
The last part of Proposition 9.2 says that we can have equality in both inequalities by choosing concrete vectors/perturbations. We have already considered the choice ini 1.. The choice in 2. corresponds to changing the right hand side to \(\mathbf{b}=(1,-1)\) (the eigenvector for the smallest eigenvalue), and the error to \(\mathbf{e}=10^{-3}(1,1)\) (the eigenvector for the largest eigenvalue). With \[\begin{align*} \mathbf{x} &= \epsilon^{-1}\begin{pmatrix} 1\\-1\end{pmatrix} & \mathbf{y} &=\epsilon^{-1}\begin{pmatrix} 1\\-1\end{pmatrix} + 10^{-3}\begin{pmatrix} 1\\1 \end{pmatrix}. \end{align*}\] we now get \[\begin{align*} A\mathbf{x}&= \epsilon^{-1}A\mathbf{v}_2 = \mathbf{v}_2=\mathbf{b} \\ A\mathbf{y}&= \epsilon^{-1}A\mathbf{v}_2 + 10^{-3}A\mathbf{v}_1 = \mathbf{v}_2 + 10^{-3}\mathbf{v}_1 = \mathbf{b} + \mathbf{e}. \end{align*}\] This gives \[\begin{align*} |\mathbf{y} - \mathbf{x}|/|\mathbf{x}|&=10^{-3}\sqrt{2}/(\epsilon^{-1}\sqrt{2})=10^{-3}\epsilon \\ |\mathbf{e}|/|\mathbf{b}|&=10^{-3}\sqrt{2}/\sqrt{2}=10^{-3}. \end{align*}\] The propagation factor in Equation 9.3 thus becomes \(\epsilon\), which gives equality in the left inequality. This choice thus gives maximal propagation of relative error under the matrix multiplication \(\mathbf{b}=A\mathbf{x}\).
The example above can seem trivial, since \(A\) is near a non-invertible matrix when \(\epsilon\) is small. The Hilbert matrix from Example 2.4 is another example of a matrix with high condition number. This is not quite as obvious, and here one also gets matrices of all sizes The code below plots condition numbers for \(n\times n\) Hilbert matrices, for different values of \(n\).

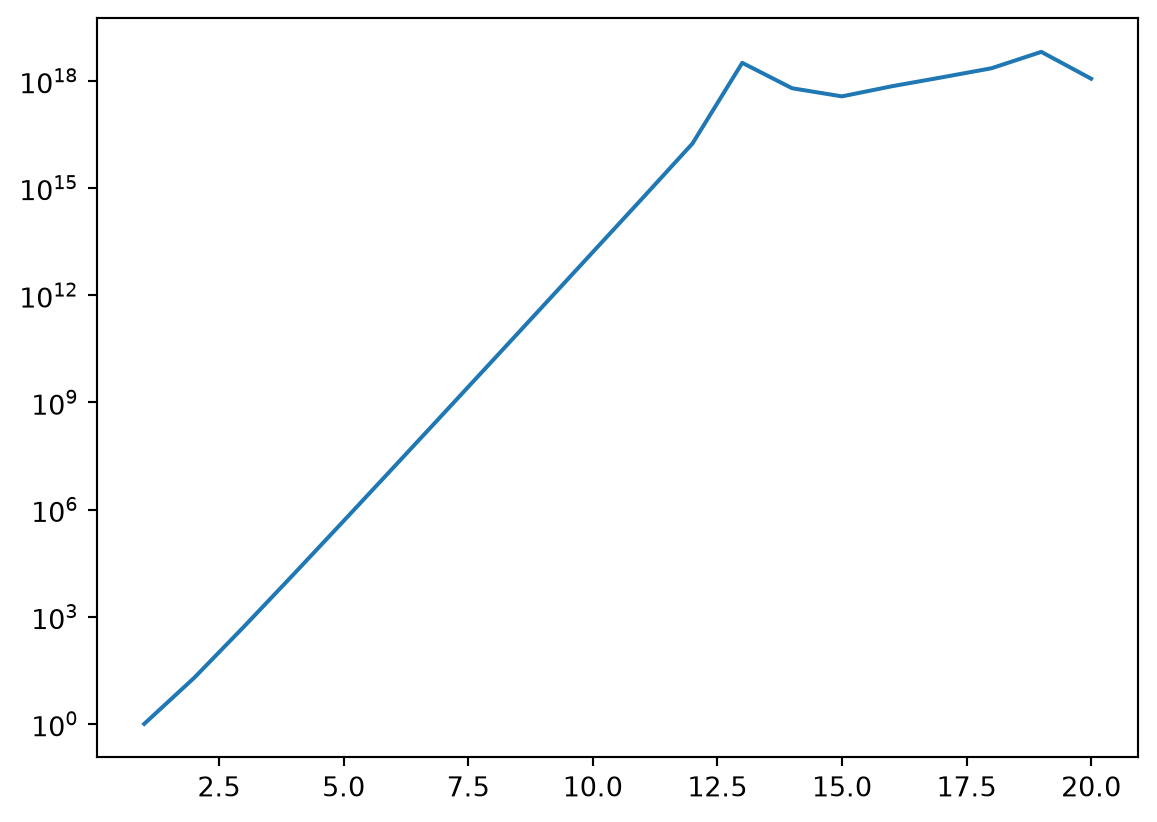

Here we used the command cond(A) , which returns the condition number of a matrix. We have \(n\) along the \(x\)-axis. The plot is logarithmic (see Exercise 9.8 when it comes to the command semilogy), so that we along the \(y\)-axis have the number of digits we lose. We see that Hilbert matrices lose about one digit in precision every time we increase \(n\). They are thus difficult to use numerically, even for small matrices and small perturbations.
Condition numbers can be defined more generally for all matrices, not just for the symmetric ones. We will not consider the more general definition, however.
Quiz
---
primary_color: orange
secondary_color: lightgray
text_color: black
shuffle_questions: false
shuffle_answers: false
---
Exercises
Exercise 9.1 Find an orthogonal diagonalisation of the matrix \(A=\begin{pmatrix} 14 & -2 \\ -2 & 11\end{pmatrix}\).
Exercise 9.2 Show that \(U_1U_2\) is orthogonal when \(U_1\) and \(U_2\) are orthogonal.
Exercise 9.3 Show that \(\left(\begin{array}{c|c} U_1 & \mathbf{0} \\ \hline \mathbf{0} & U_2 \end{array}\right)\) is orthogonal when \(U_1\) and \(U_2\) are orthogonal (here zeros are inserted so that the resulting matrix is square).
Exercise 9.4 As before we set \(A=\frac{1}{2}\begin{pmatrix}1+\epsilon & 1-\epsilon \\ 1-\epsilon & 1+\epsilon\end{pmatrix}\) and \(\mathbf{b}=\begin{pmatrix}1 \\ 1\end{pmatrix}\).
- Find the eigenvalues of \(A\) and the corresponding eigenvectors.
- Set \(\mathbf{e}=10^{-3}\begin{pmatrix} 1 \\ -1 \end{pmatrix}\). Show that the solution of \(A\mathbf{y}=\mathbf{b}+\mathbf{e}\) is \[\mathbf{y}=\begin{pmatrix} 1 \\ 1 \end{pmatrix} + 10^{-3}\epsilon^{-1}\begin{pmatrix} 1 \\ -1 \end{pmatrix}.\]
Exercise 9.5 Let \(A\) be the matrix \(A=\begin{pmatrix} 0.2 & 0.8 \\ 0.8 & 0.2 \end{pmatrix}\).
- Find the eigenvalues and eigenvectors of \(A\).
- What is the condition number \(K(A)\)?
Exercise 9.6 Suppose \(A\) is invertible, symmetric, and \(n\times n\), with eigenvalues \(\lambda_1\), \(\lambda_2\),…,\(\lambda_n\). Prove that \(A^{-1}\) also is symmetric, with eigenvalues \(1/\lambda_1,...,1/\lambda_n\).
Exercise 9.7 An \(n\times n\)-matrix is called orthogonal if \(U^{-1}=U^T\). Explain that the condition number of \(U\) is \(1\). This is the case regardless of whether \(U\) is symmetric or not. What does this tell us about such matrices when it comes to solving a perturbed system?
Exercise 9.8 If \(y=Ke^{kx}\), we say that \(y\) is exponential in \(x\), with constant \(K\) and exponent \(k\).
- The command
plt.semilogx(x,y)plots \(\log x\) against \(y\). Suppose thatplt.semilogx(x,y)displays a line. Show that then \(x\) must be exponential in \(y\). How can we find the constant \(K\) and the exponent \(k\)?
- The command
plt.semilogy(x,y)in the same way plots \(x\) against \(\log y\). Suppose thatplt.semilogy(x,y)displays a line. Show that then \(y\) must be exponential in \(x\). How can we find the constant and the exponent now?
