10 Interpolation

A basic idea in mathematics is to approximate something complicated with something simpler, in the hope that the approximation captures some of the most important information. The theory of approximation has been central in mathematics since the dawn of calculus, and is often useful in the study of functions. Most functions in mathematics can’t be expressed as combinations of the elementary functions we had in school. Nevertheless, so to say all functions of practical interest can be approximated arbitrarily well with simple functions like polynomials, trigonometric functions, or exponential functions. In computational mathematics polynomials and trigonometric functions in particular are used much.

Interpolation is one particular branch of approximation theory. To explain the setting, consider a function $f$ which may only be known at a set of points $x_0,x_1,...,x_m\in[a,b]$ (which are assumed to be distinct). We say that the function $p\colon[a,b]\to\mathbb{R}$ interpolates $f$ in these points if \[ f(x_k)=p(x_k) \qquad\text{for } k=0,1,\dots,m. \tag{10.1}\] The $x_0,x_1,\dots,x_m$ are called interpolation points. The basic question in interpolation theory is the following:

Given functions $\phi_0(x),\phi_1(x),...,\phi_n(x)$. How can we find scalars $c_0,c_1,...,c_n$ so that the linear combination \[ p(x)=c_0\phi_0(x)+c_1\phi_1(x)+\cdots+c_n\phi_n(x) \tag{10.2}\] interpolates $f$ in $x_0,x_1,...,x_m$?

The functions $\phi_i(x)$ will be called basis functions. The above leads to the system \[ \begin{aligned} c_0\phi_0(x_0)+c_1\phi_1(x_0)+\cdots+c_n\phi_n(x_0) &= f(x_0) \\ c_0\phi_0(x_1)+c_1\phi_1(x_1)+\cdots+c_n\phi_n(x_1) &= f(x_1) \\ \vdots & \\ c_0\phi_0(x_m)+c_1\phi_1(x_m)+\cdots+c_n\phi_n(x_m) &= f(x_m). \end{aligned} \tag{10.3}\] Setting $\mathbf{c}=(c_0,c_1,...,c_n)$ and $\mathbf{f}=(f(x_0),f(x_1),...,f(x_m))$, This gives the matrix equation \[ \begin{pmatrix} \phi_0(x_0) & \phi_1(x_0) & \cdots & \phi_n(x_0) \\ \phi_0(x_1) & \phi_1(x_1) & \cdots & \phi_n(x_1) \\ \vdots & \vdots & \ddots & \vdots \\ \phi_0(x_m) & \phi_1(x_m) & \cdots & \phi_n(x_m) \end{pmatrix} \mathbf{c} = \mathbf{f} \tag{10.4}\] which has a unique solution $\mathbf{c}$ for all vectors $\mathbf{f}$ if and only if the coefficient matrix (which has components $\phi_j(x_i)$) is invertible. It must thus be square, i.e., the number of interpolation points must equal the number of basis functions. This will always be the case in what follows. Once Equation 10.4 has been solved for the column vector $\mathbf{c}$, the interpolant can easily be plotted: For any $x$ Equation 10.2 can be rewritten as \[ p(x)=\begin{pmatrix} \phi_0(x) & \phi_1(x) & \cdots & \phi_n(x)\end{pmatrix} \mathbf{c} \] which means that we obtain a vector of plot points¹ as the matrix-vector product \[ \begin{pmatrix} p(x_0) \\ p(x_1) \\ p(x_2) \\ \vdots \end{pmatrix} = \begin{pmatrix} \phi_0(x_0) & \phi_1(x_0) & \cdots & \phi_n(x_0) \\ \phi_0(x_1) & \phi_1(x_1) & \cdots & \phi_n(x_1) \\ \phi_0(x_2) & \phi_1(x_2) & \cdots & \phi_n(x_2) \\ \vdots & \vdots & \vdots & \vdots \end{pmatrix} \begin{pmatrix} c_0 \\ c_1 \\ \vdots \\ c_n\end{pmatrix} \tag{10.5}\] Our plots of the interpolant will use this expression.

We start this chapter with interpolation with polynomials, where the basis functions $\phi_j$ are assumed to be polynomials of degree $j$. When we choose the basis functions as $\{1,x^1,...,x^n\}$ we will get what we call the canonical form of the interpolation polynomial (Section 10.1). When we choose the basis functions to be \[\{ 1, x-x_0, (x-x_0)(x-x_1),...,(x-x_0)(x-x_1)\cdots(x-x_{n-1}) \}\] we get what we call the Newton form of the interpolating polynomial (Section 10.2). Other choices for $\{\phi_k\}_{k=0}^n$ are also possible - the point is that all polynomials are expressible in terms of them.

We then consider the error in polynomial interpolation (Section 10.3), and find an expression for this similar to that of the remainder term in Taylor series.

We end the chapter with interpolation with trigonometric functions in Section 10.4. In this setting the basis functions are on the form $\sin(2\pi nt/T)$, or $\cos(2\pi nt/T)$, and defined on an interval $[0,T]$.

In the next chapters we will use interpolating polynomials to derive numerical methods for the derivates, and integrals, of functions.

10.1 Interpolation on canonical form

When the basis functions are $\phi_i(x)=x^i$ the interpolating polynomial takes the form \[ p_n(x)=c_0+c_1x+ c_2x^2+ \dots + c_nx^n. \tag{10.6}\] This is called the canonical form of the interpolating polynomial. The matrix form in Equation 10.4 now takes the form \[ \begin{pmatrix} 1 & x_0 & x_0^2 & \cdots & x_0^n \\ 1 & x_1 & x_1^2 & \cdots & x_1^n \\ 1 & x_2 & x_2^2 & \cdots & x_2^n \\ \vdots & \vdots & \vdots & \ddots & \vdots \\ 1 & x_n & x_n^2 & \cdots & x_n^n \end{pmatrix} \begin{pmatrix} c_0 \\ c_1 \\ c_2 \\ \vdots \\ c_n \end{pmatrix} = \begin{pmatrix} f(x_0) \\ f(x_1) \\ f(x_2) \\ \vdots \\ f(x_n) \end{pmatrix} \tag{10.7}\] The left side matrix is a square vandermonde matrix. From Example 4.3 we know that these are invertible. Equation 10.7 therefore has a unique solution for $\mathbf{c}$, and we can conclude that there is a unique interpolating polynomial. The function in Listing 10.1 plots this: It takes the vectors $\mathbf{x}=(x_0,x_1,...,x_n)$ and $\mathbf{f}=(y_0,y_1,...,y_n)$ as input, finds the coefficients $\mathbf{c}=(c_0,c_1,...,c_n)$ of the polynomial interpolating in these points, and repeats what we did in Section 2.4 to plot this. Since we are only interested in the solution to the system $V\mathbf{c}=\mathbf{f}$, it is more efficient to do as in the code, instead of computing $\mathbf{c}=V^{-1}\mathbf{f}$.

Listing 10.1: Code for finding points of the interpolating polynomial, adapted to canonical form

def points_canonical(xsp, fsp):
    numpoints = xsp.shape[0] - 1
    n = np.arange(0,numpoints+1).reshape((1,-1))
    c = np.linalg.solve(xsp**n, fsp)
    x = np.linspace(xsp[0,0], xsp[-1,0], 100).reshape((-1,1))
    p = x**n @ c
    return x, p

Some comments on this code are needed:

The code assumes that xsp and fsp are column vectors, and have equal number of components.
x**n computes a vandermonde matrix where the generators are listed in the column vector x, and the powers in the row vector n.
The coefficients c of the interpolating polynomial are found by solving Equation 10.7.
x is a column vector with plot points, and which covers the interpolation points.
The code x**n @ c computes the expression in Equation 10.5, returning a column vector with values of the interpolating polynomial.

The code above makes priority of simplicity rather than efficiency and memory usage. A Vandermonde matrix can be computed with about $n^2$ operations on a computer (see Exercise 10.1). In Section 3.1 we saw that about $\approx \frac{2}{3}n^3$ operations are required in order to solve a general system with $n$ equations and $n$ unknowns. In other words: It is more demanding to solve the system than computing the matrix for the system.

Once the plot points have been obtained it is easy to plot the interpolating polynomial for a function over a given interval.

Example 10.1 Suppose we want to find the polynomial passing through the three points $(0,1)$, $(1,3)$, and $(2,2)$. In other words, we want to find a polynomial $p$ so that \[ p(0)=1, \quad p(1)=3, \quad p(2)=2. \tag{10.8}\] Since there are three points we assume a quadratic polynomial $p(x)=c_0 + c_1 x + c_2 x^2$. Inserting in Equation 10.8 we get the three equations. \[\begin{align*} 1=p(0)&=c_0,\\ 3=p(1)&=c_0+c_1+c_2,\\ 2=p(2)&=c_0+2c_1+4c_2. \end{align*}\] Solving these gives $c_0=1$, $c_1=7/2$, and $c_2=-3/2$, so that $p$ is given by \[ p(x)=1+\frac{7}{2}x - \frac{3}{2}x^2. \] A plot of this polynomial is shown in Figure 10.1. The code verifies that the computation above gives the same plot as points_canonical.

xsp = np.array([[0],[1],[2]])
fsp = np.array([[1],[3],[2]])
x, p = points_canonical(xsp, fsp)
plt.plot(x,p)
plt.plot(x,1+7*x/2-3*x**2/2,'--')

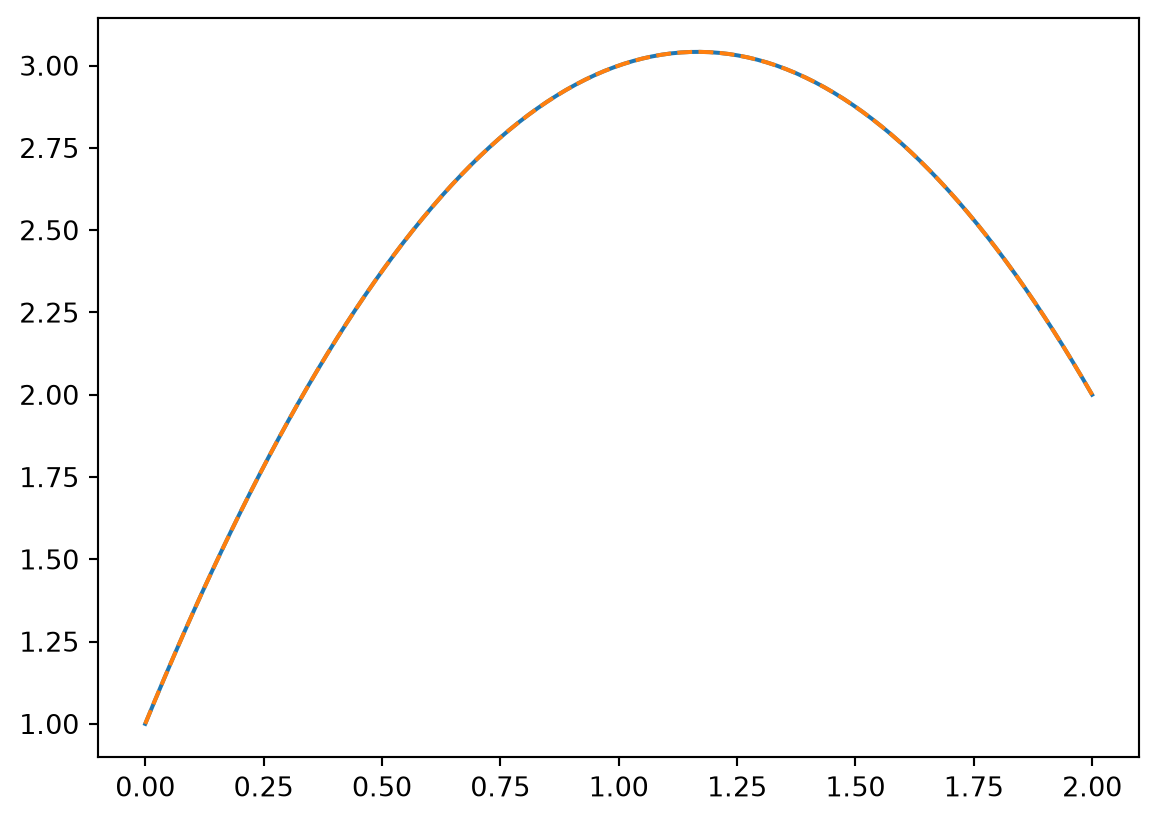

Figure 10.1: Three interpolation point and the corresponding quadratic interpolation polynomial.

$\clubsuit$

If we instead of the interpolation points are given the function itself, we can plot one or several interpolating polynomials together with the help of Listing 10.2. The code takes as input a function points_p_n which computes the plot points. At start we set this to points_canonical. In the next section we will replace this with another method for computing the plot points.

Listing 10.2: Code for the plotting the interpolating polynomials

def plot_p_n(f, a, b, nvals, points_p_n):
    x=[]
    for n in nvals:
        xsp = np.linspace(a, b, n + 1).reshape((-1,1))
        x, p = points_p_n(xsp, f(xsp))
        plt.plot(x, p, '--', label = f'p_{n}')
    plt.plot(x, f(x), '-k', label = 'f')
    plt.legend()

In Figure 10.2 we have used this code to plot the interpolating polynomials $p_2$, $p_3$, and $p_4$, for $f(x)=\cos(2\pi x)$, given a uniform partition of $[0,1]$.

plot_p_n( lambda x: np.cos(2*np.pi*x),
         0, 1, [2,3,4,5], points_canonical)

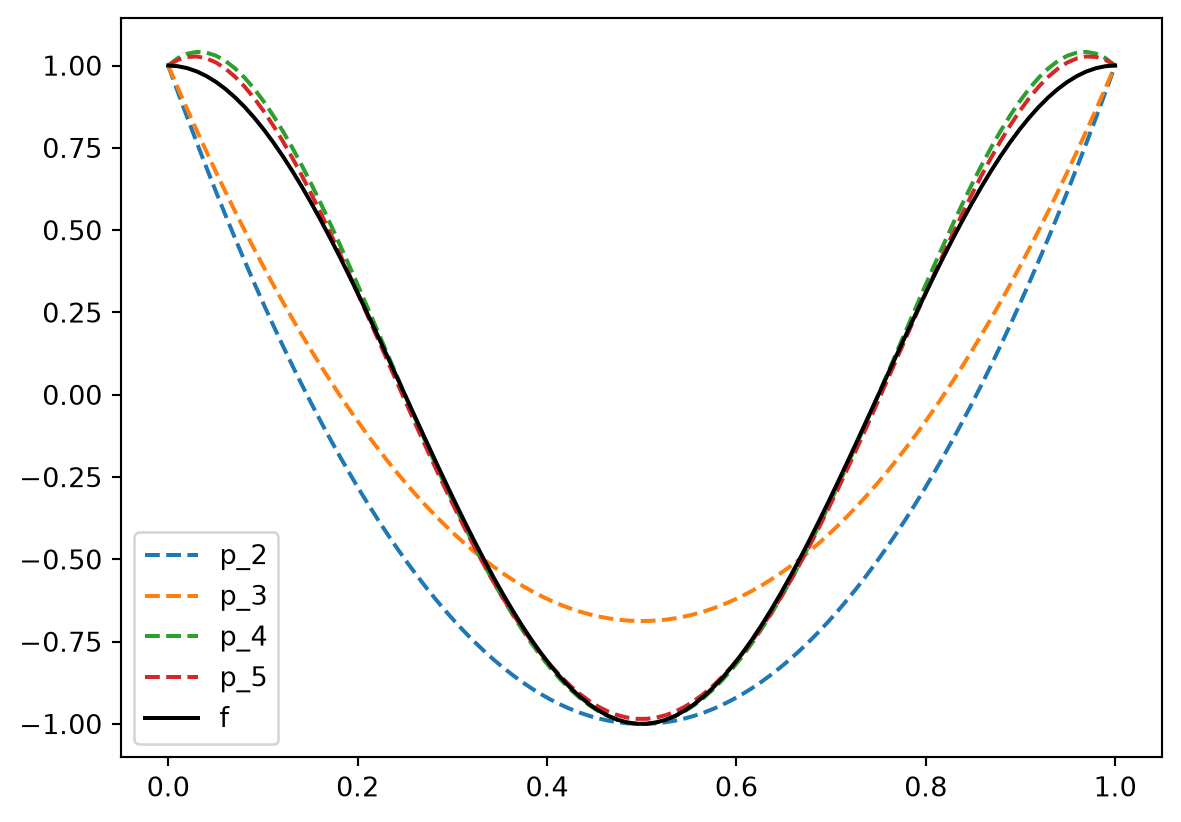

Figure 10.2: The interpolating polynomials $p_2$, $p_3$, and $p_4$, for $f(x)=\cos(2\pi x)$. $f$ is also shown.

10.2 Interpolation on Newton form

Let again $x_0,x_1,\dots,x_n$ be interpolation points. We say that the polynomial $p_n$ is on Newton form if it is written on the form.

\[ \begin{split} p_n(x)=&\,c_0+c_1(x-x_0)+c_2(x-x_0)(x-x_1)+\dots \\ &+c_n(x-x_0)(x-x_1)\cdots(x-x_{n-1}). \end{split} \tag{10.9}\]

The Newton form has some advantages compared to the canonical one. The interpolation conditions now take the form

\[ \begin{split} f(x_0)&= c_0 \\ f(x_1)&= c_0 + c_1(x_1-x_0) \\ &\ \ \vdots \\ f(x_n)&= c_0 + c_1(x_n-x_0) + \cdots + c_n(x_n-x_0)\cdots(x_n-x_{n-1}), \end{split} \tag{10.10}\]

or on matrix form:

\[ \begin{pmatrix} 1 & 0 & \cdots & 0 \\ 1 & x_1-x_0 & \cdots & 0 \\ \vdots & \vdots & \ddots & \vdots \\ 1 & x_n - x_0 & \cdots & (x_n-x_0)\cdots(x_n-x_{n-1}) \end{pmatrix} \begin{pmatrix} c_0 \\ c_1 \\ \vdots \\ c_n \end{pmatrix} = \begin{pmatrix} f(x_0) \\ f(x_1) \\ \vdots \\ f(x_n) \end{pmatrix}. \tag{10.11}\] This is a triangular system, and if the interpolation points are distinct, all components on the diagonal will be nonzero. The determinant of the matrix is then also nonzero, så that the matrix is invertible. Equation 10.11 thus has a unique solution $(c_0,c_1,\dots,c_n)$. In other words, the Newton form is unique..

Triangular systems are simpler to solve than general systems. To see this, denote the triangular matrix by $A$, let $A=\bigl(a_{ij}\bigr)_{i,j=0}^n$ be the components of $A$, and let $A\mathbf{c}=\mathbf{f}$ be the system we want to solve. It is clear that we can find $c_0$ from the first equation, since this only says that $c_0=f_0$ (recall that $a_{00}=1$). Suppose we have found $c_0,c_1,\dots,c_{k-1}$ from the $k$ first equations. Equation $k+1$ says that \[ a_{k0}c_0 + a_{k1}c_1 + \cdots + a_{k(k-1)}c_{k-1} + a_{kk}c_k = f_k. \] We can write this as \[ c_k = \frac{1}{a_{kk}}\left( f_k - a_{k0}c_0 - a_{k1}c_1 - \cdots - a_{k(k-1)}c_{k-1}\right) \tag{10.12}\] (the diagonal element $a_{kk}=x_k-x_0$ is nonzero, so this expression gives meaning). We can therefore find $c_k$ from equation $k+1$ in the system. This method to solve a triangular system is called forward substitution: We first find $c_0$, use this to find $c_1$, then use these to find $c_2$, and so on.

Using Equation 10.12 to find $c_k$ requires $k$ subtractions and $k$ multiplications. If we sum over all $k$ we get \[ 2 + 4 + 6 + \cdots + 2n = 2(1+2+\dots+n)= n(n+1) \approx n^2\] operations (we approximate with $n^2$ since $n^2$ is the dominating term here). In addition we have $\approx n^2/2$ operations to find the numbers $x_i-x_j$. Together this gives $3n^2/2$ operations. This is a great reduction when we compare with $\approx\frac{2}{3}n^3$ operations for the canonical system. By adapting the form of the interpolating polynomials, we thus get computation reduction for our method. The learning outcome for the newton form is thus that it can be smart to look at other ways to represent polynomials.

In Listing 10.3 we computed values of the interpolating polynomial using the Newton form, analogous to Listing 10.1 for the canonical form. The first for-loop applies forward substitution to find $c_0,c_1,...,c_n$.

Listing 10.3: Code to find values of the interpolating polynomial, adapted to Newton form

def points_newton(xsp, fsp):
    numpoints = np.shape(xsp)[0] - 1
    x = np.linspace(xsp[0], xsp[-1], 100).reshape((-1,1))
    V = np.ones((100, numpoints + 1))
    c = np.zeros((numpoints+1,1))
    c[0,0] = fsp[0,0]
    for k in range(1,numpoints+1):
        s = fsp[k,0]
        p = 1
        for r in range(0,k):
            s = s - c[r,0]*p
            p = p*(xsp[k,0] - xsp[r,0])
        c[k,0] = s/p
        V[:,[k]] = V[:,[k-1]]*(x - xsp[k-1,0])
    p = V @ c
    return x, p

Example 10.2 (The Newton form for $n=0$, $1$, and $2$) If there is only one interpolation point $x_0$, the Newton form becomes $p_0(x)=c_0$. We get that $c_0=f(x_0)$, so that \[p_0(x)=f(x_0).\] With two points $x_0$ and $x_1$ the newton form becomes $p_1(x)=c_0+c_1(x-x_0)$. We get the equations \[\begin{align*} f(x_0) &= c_0 \\ f(x_1) &= c_0 + c_1(x_1-x_0) \end{align*}\] which have the solution \[ c_0=f(x_0),\quad c_1=\frac{f(x_1)-f(x_0)}{x_1-x_0}. \tag{10.13}\] This gives \[ p_1(x)= f(x_0) + \frac{f(x_1)-f(x_0)}{x_1-x_0}(x-x_0), \] which simply is the secant of $f$ through $x_0$ and $x_1$, see Figure 10.3. For comparison, the first order Taylor polynomial of $f$ gives the tangent at the point.

If we add yet another point $x_2$ we get a quadratic interpolation polynomial: \[ p_2(x)=c_0+c_1(x-x_0)+c_2(x-x_0)(x-x_1) \] If we insert $x=x_0$ and $x=x_1$ we get the equations \[\begin{align*} f(x_0) &=c_0,\\ f(x_1) &=c_0+c_1(x_1-x_0), \end{align*}\] These are the same equations we solved for $n=1$, so $c_0$ and $c_1$ must be given by Equation 10.13 also when $n=2$. If we insert $x=x_2$ we get \[ f(x_2)=c_0+c_1(x_2-x_0)+c_2(x_2-x_0)(x_2-x_1), \] which gives \[ c_2=\frac{f(x_2)-f(x_0)-\frac{f(x_1)-f(x_0)}{x_1-x_0}(x_2-x_0)}{(x_2-x_0)(x_2-x_1)}. \] After some simplification this can be written \[ c_2=\frac{\frac{f(x_2)-f(x_1)}{x_2-x_1}-\frac{f(x_1)-f(x_0)}{x_1-x_0}}{x_2-x_0}. \tag{10.14}\] The interpolating polynomial is now a parabola, see Figure 10.3.

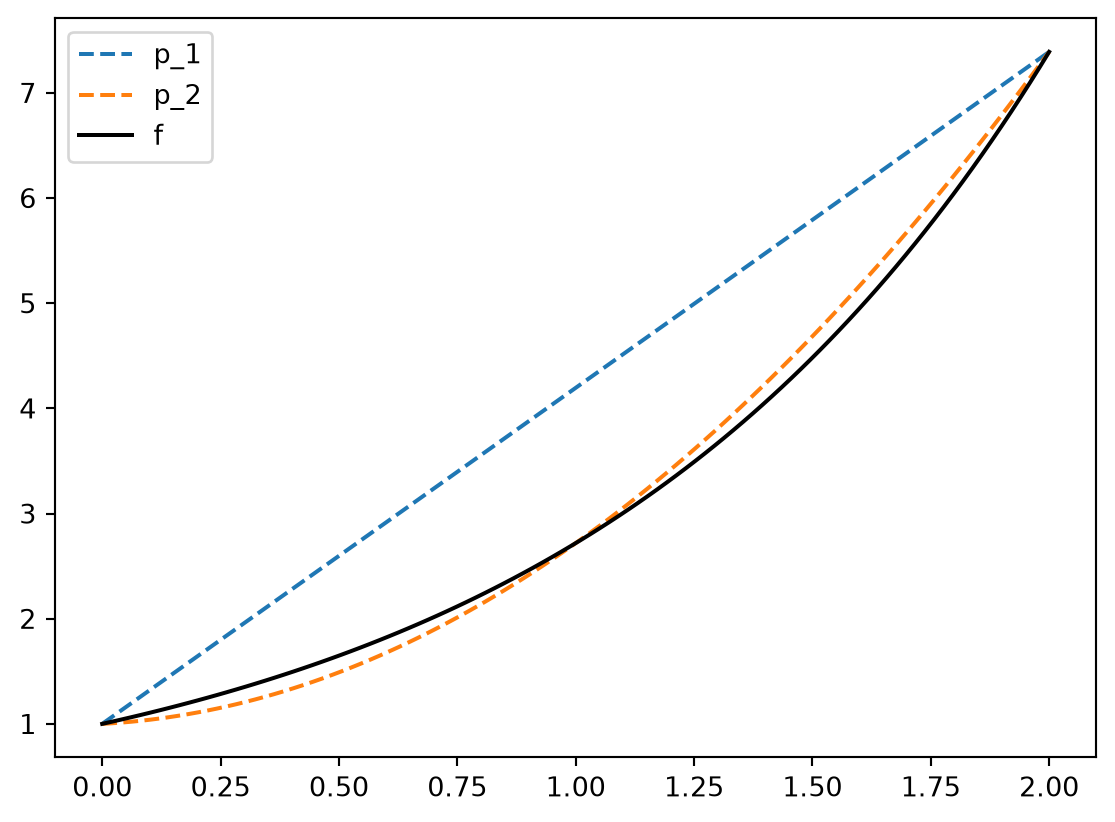

plot_p_n(np.exp, 0, 2, [1,2], points_newton)

$\clubsuit$

Example 10.3 Let us return to Example 10.1, where the interpolation points were $(0,1)$, $(1,3)$, and $(2,2)$, and make the computations on Newton form. We write the interpolating polynomial as \[ p_2(x)=c_0 + c_1x+c_2x(x-1). \] If we insert the points we get the three equations \[\begin{align*} 1=p(0)&=c_0,\\ 3=p(1)&=c_0+c_1,\\ 2=p(2)&=c_0+2c_1+2c_2, \end{align*}\] which have the solution $c_0=1$, $c_1=3-c_0=2$, and $c_2=(2-c_0-2c_1)/2=-3/2$, so that the Newton form of the interpolating polynomial is \[ p_2(x)=1+2x-\frac{3}{2}x(x-1) \]

$\clubsuit$

More generally we see from the triangular system in Equation 10.10 that the equation obtained from the insertion $x=x_k$ only involves the points $\bigl(x_0,f(x_0)\bigr)$, $\bigl(x_1,f(x_1)\bigr)$, , $\bigl(x_k,f(x_k)\bigr)$. Thus, $c_k$ will only depend on these points. It is therefore usual to write \[ c_k=f[x_0,\ldots, x_k] \tag{10.15}\] for $k=0$, $1$, , $n$, so that the Newton form \[ p_n(x)=c_0+c_1(x-x_0)+\cdots+c_n(x-x_0)(x-x_1)\cdots(x-x_{n-1}) \tag{10.16}\] can be written \[ \begin{aligned} p_n(x) &= f[x_0] + f[x_0,x_1](x-x_0) + f[x_0,x_1,x_2](x-x_0)(x-x_1) \\ &\quad + \cdots + f[x_0,x_1,\dots,x_n](x-x_0)(x-x_1)\cdots(x-x_{n-1}). \end{aligned} \tag{10.17}\] Note that the interpolating polynomials $p_n$ and $p_{n-1}$ satisfy \[ p_n(x)=p_{n-1}(x)+f[x_0,\ldots,x_n](x-x_0)\cdots(x-x_{n-1}). \] Figure 10.4 shows the interpolating polynomial $p_n$ for different values of $n$ for the function $f(x)=\sin(x)$. We see that the approximation becomes better when we increase $n$.

plot_p_n(np.sin, 0, 4, [1,2,3,4], points_newton)

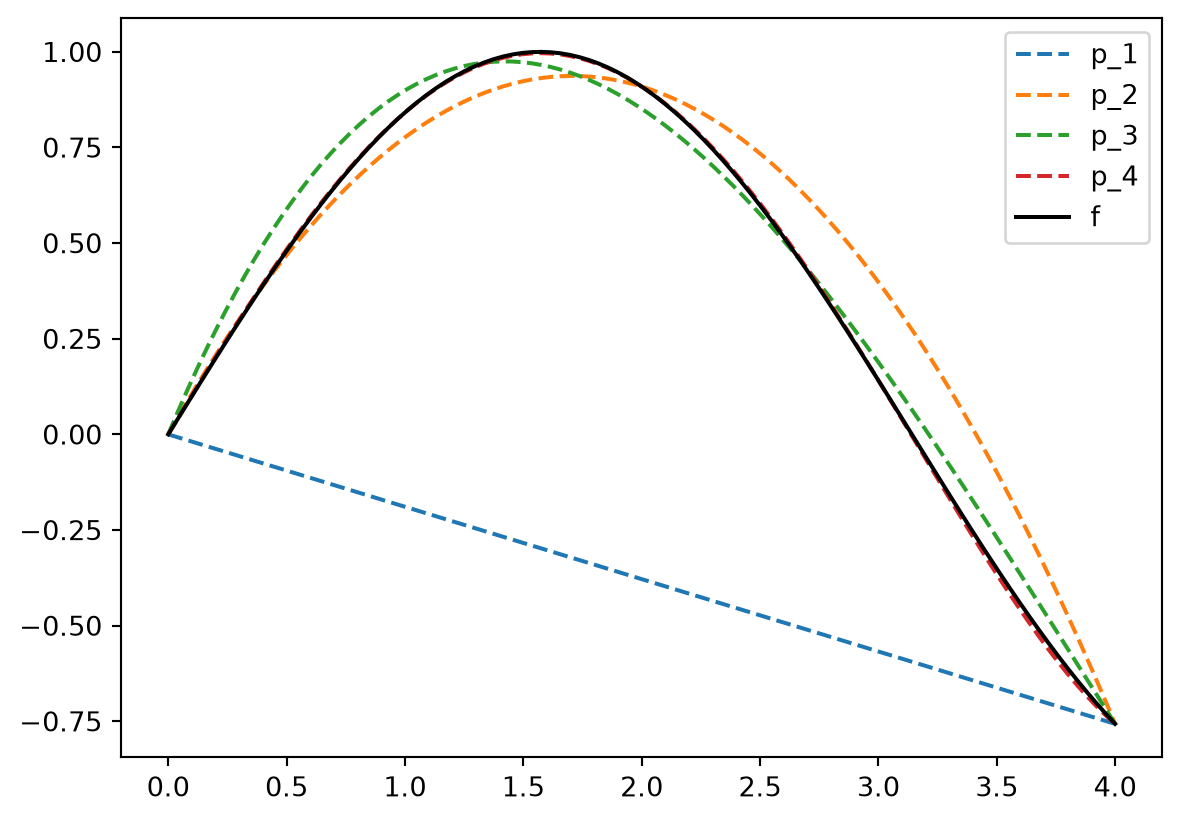

Figure 10.4: Interpolation of $f(x)=\sin(x)$ with polynomials of different degrees.

Example 10.4 We interpolate the function $f(x)=\sqrt{x}$ in the points $x_i=i$, for $i=0,1,2,3$. The Newton form becomes \[ p_3(x)=c_0+c_1x + c_2 x(x-1) + c_3x(x-1)(x-2), \] and the interpolation conditions give \[\begin{align*} 0 &=c_0,\\ 1 &= c_0+c_1,\\ \sqrt{2} &=c_0+2c_1+2c_2,\\ \sqrt{3} &=c_0+3c_1+6c_2+6c_3. \end{align*}\] If we solve this system we get \[\begin{align*} c_0&=0, & c_1&=1, & c_2,&=-(1-\sqrt{2}/2), & c_3&=(3+\sqrt{3}-3\sqrt{2})/6. \end{align*}\] Figure 10.5 shows the interpolating polynomial.

plot_p_n(np.sqrt, 0, 3, [3], points_newton)

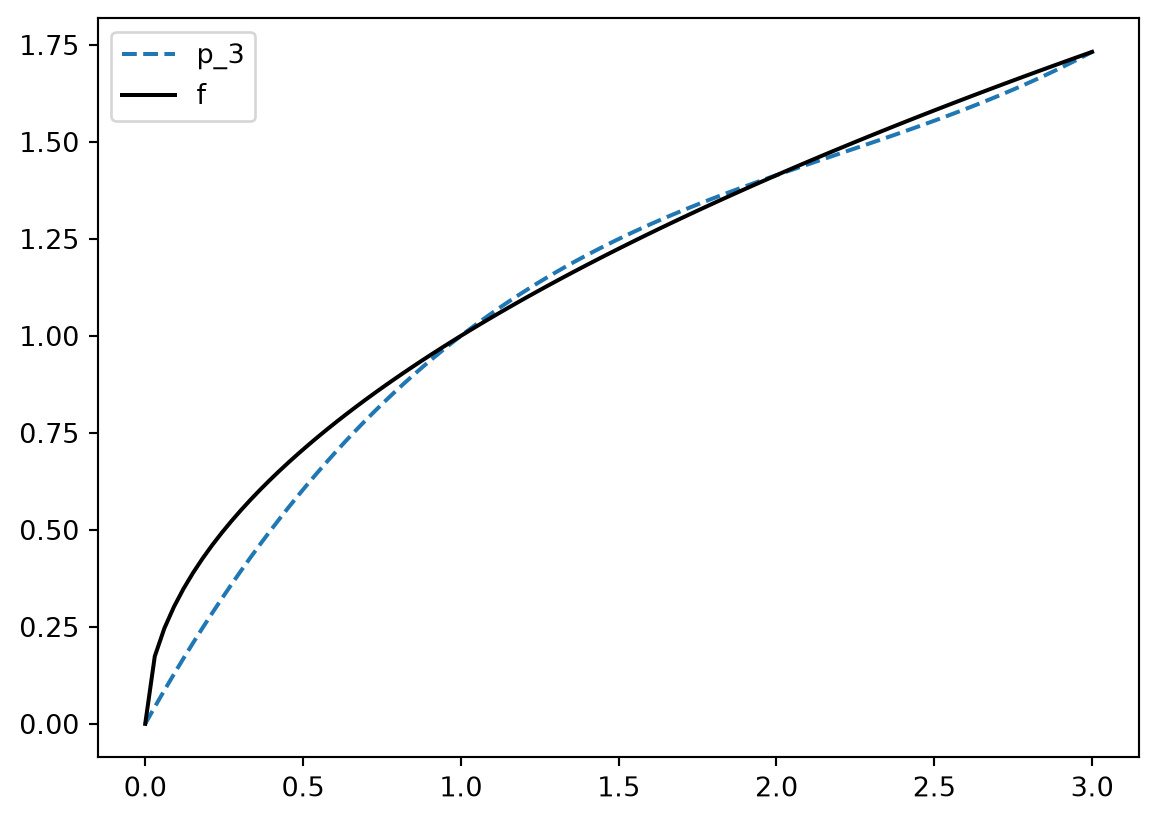

Figure 10.5: The function $f(x)=\sqrt x$ (solid line) and the cubic interpolant in the four points $0$, $1$, $2$, and $3$.

$\clubsuit$

If interpolation is used the right way, it will usually give a good approximation to the underlying function. As the distance between neighbouring points decrease (either by increasing the number of points, or by moving the points closer to each other), one can expect that the approximation gets better. But we know that there exist functions for which Taylor polynomials are bad approximations, and the same thing can happen for interpolation. We can get this problem when the derivative of the function gets very large, as the following example shows.

Example 10.5 The Runge function is defined by $f(x)=1/(1+x^2)$ on the interval $[-5,5]$. The interpolants of degree 10 and 20 are shown in Figure 10.6.

plot_p_n(lambda x: 1/(1+x**2), -5, 5, [10,20], points_newton)
plt.axis([-5,5,-0.5,2])

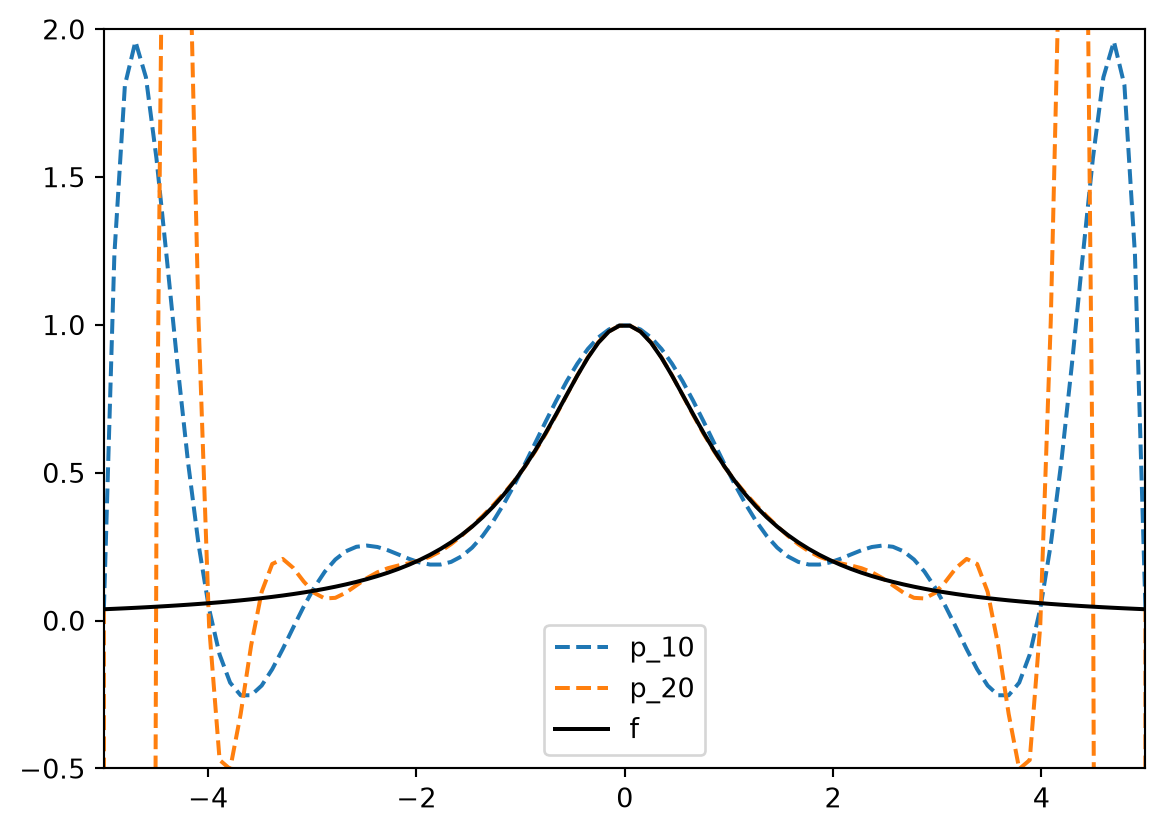

Figure 10.6: Interpolation of the Runge function $f(x)=1/(1+x^2)$ on the interval $[-5,5]$.

Observe what happens when the degree increases: The error then gets less in the middle of the interval, but larger near the end points. We will analyse what goes wrong in Section 10.3.

$\clubsuit$

The Newton- and canonical forms are just two ways to write the interpolating polynomial - many other variants exist also. One of these is the Lagrange formen, which we will consider in Exercise 10.5.

10.3 The interpolation error

In the previous section we saw examples where the interpolating polynomial $p_n$ becomes a better approximation when we increase $n$, but we also saw examples where the opposite happens. We will now give a mathematical explanation of why this happens.

We shall explain that the error in polynomial interpolation can be expressed in a way similar to the remainder term in Taylor series, which says that if $f$ is $n+1$ times continuously differentiable, then for any $x$ there is a number $\xi\in[a,x]$ so that \[ f(x) = p(x) + \frac{(x-a)^{n+1}}{(n+1)!}f^{(n+1)}(\xi). \tag{10.18}\] If $x$ is near $a$, and the derivative $f^{(n+1)}$ is not very large, the remainder will be small, and $p$ is therefore near $f$. In other words: If the derivatives of $f$ are not very large, the Taylor polynomial $p$ will be a good approximation to $f$, at least near $a$.

Theorem 10.1 Let $x_0,x_1,\dots,x_n\in[a,b]$ be distinct interpolation points, and suppose that the function $f\colon[a,b]\to\mathbb{R}$ is (at least) $n+1$ times continuously differentiable. Let $p_n$ be the unique interpolating polynomial of degree $\leq n$ in the points $x_0,x_1,\dots,x_n$. Then \[ |f(x)-p_n(x)| \leq \frac{M_{n+1}(b-a)^{n+1}}{(n+1)!} \tag{10.19}\] for all $x\in[a,b]$, where $M_{n+1} = \max_{[a,b]} |f^{(n+1)}|$.

Proof. Let $x\in[a,b]$. We claim that there is a point $y\in[a,b]$ so that \[ f(x)-p_n(x) = \frac{f^{(n+1)}(y)}{(n+1)!}Q_n(x), \tag{10.20}\] where $Q_n$ is the degree $(n+1)$ polynomial \[ Q_n(x) = (x-x_0)(x-x_1)\cdots(x-x_n). \] If $x$ is one of the points $x_0,x_1,\dots,x_n$, then both sides of Equation 10.20 are $0$, so that the identity is automatically true. Suppose then that $x$ is NOT one of the points $x_0,x_1,\dots,x_n$, and define the function \[ \phi(t) = f(t) - p_n(t) - \frac{f(x)-p_n(x)}{Q_n(x)}Q_n(t) \qquad\text{for } t\in[a,b]. \] Then $\phi$ has zeros in the $n+2$ distinct points $x, x_0,x_1,\dots,x_n$ (this is Exercise 10.11). By the mean value theorem it follows then that there exist $n+1$ points in the interval $(a,b)$ where $\phi'$ equals 0. By the same arguments, there must exist $n$ points where $(\phi')' = \phi''$ equals 0. Continuing this way, we find that the function $\phi^{(n+1)}$ has at least one zero $y\in(a,b)$. Since $p_n^{(n+1)} \equiv 0$ and $Q^{(n+1)} \equiv (n+1)!$ (this is Exercise 10.12), we get \[ 0 = \phi^{(n+1)}(y) = f^{(n+1)}(y) - \frac{f(x)-p_n(x)}{Q_n(x)}(n+1)!. \] Reorganising this equation we get Equation 10.20.

If we replace $|f^{(n+1)}(y)|$ on the right hand side in Equation 10.20 with its maximum, we get \[ |f(x)-p_n(x)| \leq \frac{M_{n+1}}{(n+1)!}|Q_n(x)|. \] Since each of the terms $(x-x_0), \dots, (x-x_n)$ can be at most $b-a$ (because the points $x,x_0,x_1,\dots,x_n$ all lie in $[a,b]$), we see that $|Q_n(x)| \leq (b-a)^{n+1}$ for all $x$. This proves Equation 10.19.

Since the faculty $(n+1)!$ gets very large when $n$ increases, we see that the interpolation error decreases when $n$ grows, AS LONG AS $M_{n+1}$ does not grow too fast!

Example 10.6 In Figure 10.4 we interpolated the function $f(x) = \sin(x)$ on the interval $[a,b]=[0,2\pi]$. If we choose $n+1$ uniformly distributed interpolation points $x_0,x_1,\dots,x_n$, we get an interpolating polynomial of degree $\leq n$. We know that the derivatives of $f$ are either $\pm \cos(x)$ or $\pm\sin(x)$, and none of these functions obtain values larger than $1$. Therefore, $M_{n+1} \leq 1$ for all $n$. We therefore get \[ |f(x)-p_n(x)| \leq \frac{(2\pi)^{n+1}}{(n+1)!}. \] Since $(n+1)!$ grows much faster than $(2\pi)^{n+1}$ when $n$ grows, the error will go quickly to $0$ when $n$ grows. $\clubsuit$

Example 10.7 Let $f$ be the Runge function from Example 10.5, given by $f(x)=1/(1+x^2)$ for $x\in[-5,5]$. A slightly technical computation shows that $M_{n+1} \approx (n+1)!$ on the interval $[-5,5]$. The error estimate in Equation 10.19 therefore says that \[ |f(x)-p_n(x)| \leq \frac{M_{n+1}(b-a)^{n+1}}{(n+1)!} \approx (b-a)^{n+1} = 10^{n+1}, \] which is a very large number when $n$ is large. The error estimate thus DOES NOT guarantee that the interpolation error is small when $n$ is large. And, as we saw in Example 10.5, the error is actually quite large. $\clubsuit$

10.4 Interpolation with trigonometric functions

We shall now interpolate with trigonometric functions, rather than with polynomials. Trigonometric functions can be thought of as the building blocks of sound. Think of a sound as a mathematical function which returns its amplitude at a given instance in time. A sine wave on the form $\sin(2\pi t/T)$ ($T$ is the period of the sine wave) in particular makes a distinct sound it may be possible to match with a key on a piano. And adding many sine waves with different periods together, it turns out that more complex sounds can be obtained. We will therefore illustrate interpolation with trigonometric functions in terms of applications to sound.

Sound on a computer is represented as numbers between $-1$ and $1$, called sound samples. In many applications sound is represented by 44100 samples for each second, also called the sampling frequency, denoted freq_s.

The sounds we consider will be periodic. If a sound repeats 440 times per second we say that its frequency is $f=440$Hz. The period is then T=1/freq, and the number of samples per period is freq_s/freq (which may not be an integer). In the following we will plot the sound samples against time. First we will plot sounds over one period.

freq_s = 44100
freq = 440
T= 1/freq
samples_per_period = int(freq_s/freq)
t = np.linspace(0,T,samples_per_period).reshape((-1,1))

The interpolating function $p$ will agree with the function (denoted as before by $f$) at a subset of the plot points. We pick $M=2N+1$ function values uniformly on $[0,T]$, so that $t_k=kT/M$, $0\leq k<M$. We set \[\mathbf{f}=(f(0\cdot T/M),f(1\cdot T/M),...,f((M-1)T/M)).\]

N=20
M=2*N+1
tsp = np.linspace(0,T-T/M,M).reshape((-1,1))

We will consider the square wave defined by \[ f_s(t)=\begin{cases} 1 & \text{ for } 0\leq t<T/2 \\ -1 & \text{ for } T/2\leq t<T.\end{cases} \] The following function returns samples of the square wave at concrete instances in time in one period.

def square_wave(t, T):
    return 2*(t < T/2).astype(int) -1

We obtain the samples of the square wave at the interpolation points and the plot points as follows.

fsp = square_wave(tsp, T) # samples from one period
f = square_wave(t, T) # plot points

Let us now use the $M=2N+1$ trigonometric functions \[\{1\}\cup\{\cos(2\pi nt/T),\sin(2\pi nt/T)\}_{n=1}^N\] as a basis for interpolation. Since \[\begin{align*} e^{it} &= \cos t + i\sin t & e^{-it} &= \cos t - i\sin t \\ \cos t &= \frac{1}{2}(e^{it} + e^{-it}) & \sin t &= \frac{1}{2i}(e^{it} - e^{-it}) \end{align*}\] we may as well use \[ \{ e^{2\pi int/T} \}_{n=-N}^N \tag{10.21}\] as a basis for interpolation instead. It turns out that these functions, which are complex, will simplify things a lot. We have the following result:

Theorem 10.2 The unique function interpolating $f$ at the points $\{kT/M\}_{k=0}^{M-1}$ using the basis from Equation 10.21 is \[ p(t)=\sum_{n=-N}^N c_n e^{2\pi int/T}, \tag{10.22}\] where the $c_n$ can be found from \[ (c_0,...,c_N,c_{-N},c_{-1}) = \frac{1}{M}F_M\mathbf{f}, \tag{10.23}\] where $F_M$ is the DFT matrix from Example 2.6. Moreover, $p(t)$ is a real function.

The proof is a bit technical, so we defer it to the end of the section. Let us first consider how this result can be implemented. The theorem says that the coefficients of the interpolating function can be obtained as

c = np.fft.fft(fsp, axis = 0)/M

We want the components in c to come in the same order as $(c_{-N},...,c_{-1},c_0,...,c_N)$, so we swap the two halves of this vector:

c = np.block([ [c[(N+1):,:]] , [c[:(N+1),:]] ])

Equation 10.22 can now be written as a matrix-vector product, and we obtain plot points of $p$ with the following implmentation.

n = np.arange(-N,N+1).reshape((1,-1))
p = np.real( np.exp(2*np.pi*1j*n*t/T) @ c )

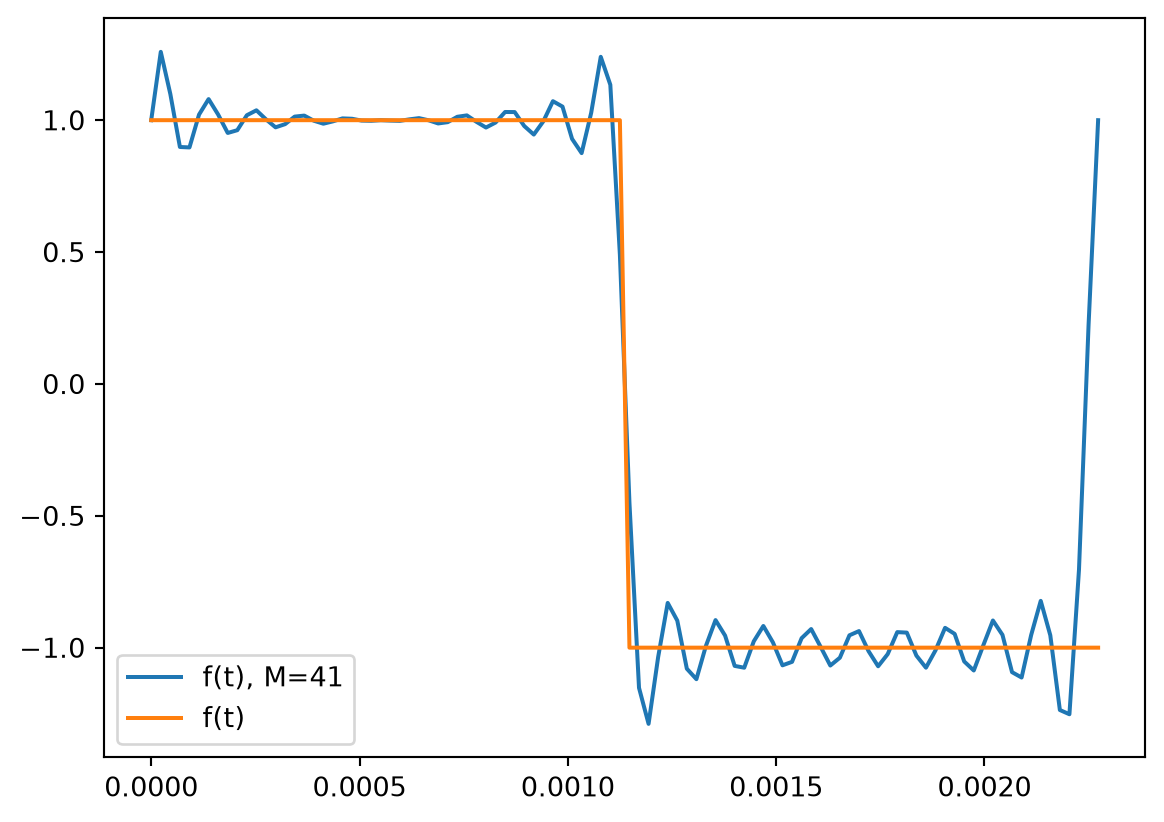

We can plot this together with the square wave itself as follows.

plt.plot( t, p)
plt.plot( t, f)
plt.legend([f"f(t), M={M}",'f(t)'])

In order to listen to a set of samples as a sound we need the following function

def audiowrite(filename, f, freq_s):
    ofile = wave.open(filename, 'w')
    ofile.setsampwidth(2)
    ofile.setframerate(freq_s)
    ofile.setnchannels(1)
    max_amplitude = 2**15-1
    f=max_amplitude*f
    f=f.astype(np.uint16)
    ofile.writeframesraw(f.astype(np.uint16).tobytes())
    ofile.close()

We now generate sounds corresponding to a sine, a square wave and its interpolant (we set the sounds to last three seconds).

numsec=3

t = np.linspace(0,numsec,samples_per_period*numsec*freq)
sine = np.sin(2*np.pi*freq*t)

f = f.reshape(-1)
f = np.tile(f, numsec*freq)

p = p.reshape(-1)
p = np.tile(p, numsec*freq)
p = p/np.abs(p).max()

The periods of the square wave and its interpolant were tiled so many times that it lasts the given number of seconds. The sound samples of the interpolant were scaled so that they are between -1 and 1, as is required for sound samples on a computer. This was necessary since the plot showed that the values of the interpolant exceeded 1, although the square wave did not.

Finally we write sound data to file:

audiowrite('sine.wav', sine, freq_s)
audiowrite('square.wav', f, freq_s)
audiowrite('interpolant.wav', p, freq_s)

You can now listen to the three generated files in your favourite audio player.

Proof. (of Theorem 10.2). The interpolation conditions are \[ \sum_{n=-N}^N c_ne^{2\pi ink/M} = f(kT/M), \tag{10.24}\] where $0\leq k<N$. This corresponds to the matrix equation \[ \left(\begin{array} {ccc|ccc} e^{2\pi i0(-N)/M} & \cdots & e^{2\pi i0(-1)/M} & e^{2\pi i00/M} & \cdots & e^{2\pi i0N/M}\\ e^{2\pi i1(-N)/M} & \cdots & e^{2\pi i1(-1)/M} & e^{2\pi i10/M} & \cdots & e^{2\pi i1N/M}\\ \vdots & \ddots & \vdots & \vdots &\ddots & \vdots \\ e^{\frac{2\pi i(M-1)(-N)}{M}} & \cdots & e^{\frac{2\pi i(M-1)(-1)}{M}} & e^{\frac{2\pi i(M-1)0}{M}} & \cdots & e^{\frac{2\pi i (M-1)N}{M}} \end{array}\right) \left(\begin{array}{c} c_{-N} \\ \vdots \\ c_{-1} \\ \hline c_0 \\ \vdots \\ c_N \end{array}\right) =\mathbf{f}. \] Using Equation 2.11 we get \[ \left(\begin{array}{ccc|ccc} e^{2\pi i00/M} & \cdots & e^{2\pi i0N/M} & e^{2\pi i0\cdots(-N)/M} & \cdots & e^{2\pi i0(-1)/M} \\ e^{2\pi i10/M} & \cdots & e^{2\pi i1N/M} & e^{2\pi i1(-N)/M} & \cdots & e^{2\pi i1(-1)/M} \\ \vdots & \ddots & \vdots & \vdots &\ddots & \vdots \\ e^{\frac{2\pi i(M-1)0}{M}} & \cdots & e^{\frac{2\pi i (M-1)N}{M}} & e^{\frac{2\pi i(M-1)(-N)}{M}} & \cdots & e^{\frac{2\pi i(M-1)(-1)}{M}} \end{array}\right) \left(\begin{array}{c} c_0 \\ \vdots \\ c_N \\ \hline c_{-N} \\ \vdots \\ c_{-1} \end{array}\right) =\mathbf{f}. \] Using that $e^{2\pi i(-n)k/M}=e^{2\pi i(M-n)k/M}$ we get \[ \begin{pmatrix} e^{2\pi i00/M} & \cdots & e^{2\pi i0N/M} & e^{2\pi i0(M-N)/M} & \cdots & e^{2\pi i0(M-1)/M} \\ e^{2\pi i10/M} & \cdots & e^{2\pi i1N/M} & e^{2\pi i1(M-N)/M} & \cdots & e^{2\pi i1(M-1)/M} \\ \vdots & \ddots & \vdots & \vdots &\ddots & \vdots \\ e^{\frac{2\pi i(M-1)0}{M}} & \cdots & e^{\frac{2\pi i (M-1)N}{M}} & e^{\frac{2\pi i(M-1)(M-N)}{M}} & \cdots & e^{\frac{2\pi i(M-1)(M-1)}{M}} \end{pmatrix} \begin{pmatrix} c_0 \\ \vdots \\ c_N \\ c_{-N} \\ \vdots \\ c_{-1} \end{pmatrix} =\mathbf{f}. \] $M=2N+1$ implies that $M-N=N+1$, so that this can be written as \[ \begin{pmatrix} e^{2\pi i0\cdot 0/M} & e^{2\pi i0\cdot 1/M} & \cdots & e^{2\pi i0(M-1)/M}\\ e^{2\pi i1\cdot 0/M} & e^{2\pi i1\cdot 1/M} & \cdots & e^{2\pi i1(M-1)/M}\\ \vdots & \vdots & \ddots & \vdots \\ e^{2\pi i(M-1)0/M} & e^{2\pi i(M-1)1/M} & \cdots & e^{2\pi i (M-1)(M-1)/M} \end{pmatrix} \begin{pmatrix} c_0 \\ \vdots \\ c_N \\ c_{-N} \\ \vdots \\ c_{-1} \end{pmatrix} =\mathbf{f}. \] From Example 4.4 we see that the matrix on the left side is $MF_M^{-1}$. Multiplying with $F_M$ on both sides we get Equation 10.23.

Finally, let us comment on why $p(t)$ must be real. Since $\mathbf{f}$ is real it follows that $c_{-n}=\overline{c_n}$ (see Exercise 2.13), so that \[ c_ne^{2\pi int/T} + c_{-n}e^{2\pi i(-n)t/T} = 2\Re(c_ne^{2\pi int/T}). \] Since also $c_0$ is real, it follows that Equation 10.22 also evaluates to something real.

Quiz

--- primary_color: orange secondary_color: lightgray text_color: black shuffle_questions: false shuffle_answers: false --- ## The interpolating polynomial of a sum. Suppose the polynomial $p_n$ interpolates $f$ in $n+1$ points, and that the polynomial $q_n$ interpolates $g$ in the same points. The polynomial interpolating $f + g$ in the same points is then $p_n+q_n$. 1. [x] True 2. [ ] False ## The interpolating polynomial of a product. Suppose the polynomial $p_n$ interpolates $f$ in $n+1$ points, and that the polynomial $q_n$ interpolates $g$ in the same points. The polynomial interpolating $fg$ in the same points is then $p_nq_n$. 1. [ ] True 2. [x] False ## Trur or false. There exist many polynomials of degree $\leq n$ which interpolate a given function $f$ in $n+1$ points. 1. [ ] True 2. [x] False

Exercises

Exercise 10.1 In this exercise we will look at code which computes the matrix we need to find the canonical form of the interpolating polynomial. Listing 10.2 computed the Vandermonde matrix with the code

p = np.arange(0,n+1).reshape((1,-1))
A = x**p

Compare this with the following alternative code:

A[:,0] = np.ones((n+1,1))
for k in range(1,n+1):
    A[:,[k]] = A[:,[k-1]]*x

Which of the two alternatives is to prefer? Justify your answer, and what assumptions you make.

Exercise 10.2 In this exercise we will consider another proof of the fact that the interpolating polynomial is unique .

Suppose that there exist two quadratic polynomials $p_1$ and $p_2$ which interpolate $f$ in the three points $x_0$, $x_1$ and $x_2$. Consider the difference $p=p_2-p_1$. What are the values of $p$ in the interpolation points?

Use the observation in (a) to show that $p_1$ and $p_2$ must be equal.

Generalise the results from (a) and (b) to polynomials of degree $n$.

Exercise 10.3 (Horner’s rule) A direct computation of Equation 10.6 in a point $x$ requires $n$ multiplications and $n$ additions, as well as computation of the powers ($n-1$ multiplikasjoner). In total this is $3n-1$ operations. Let us rewrite Equation 10.6 to \[ p_n(x)=c_0+x\left( c_1 + c_2x + c_3x^2 + \cdots c_nx^{n-1}\right). \tag{10.25}\] Inside the parentheses on the right side here there is a polynomial of degree $n-1$ (which we call $p_{n-1}$), which in the same way can be expressed in terms of a polynomial of degree $n-2$ ($p_{n-2}$), and so on. We have that \[ \begin{array} {ccc} p_n(x) &=& c_0 + xp_{n-1}(x) \\ p_{n-1}(x) &=& c_1 + xp_{n-2}(x) \\ p_{n-2}(x) &=& c_2 + xp_{n-3}(x) \\ \vdots & & \vdots \\ p_1(x) &=& c_{n-1} + xp_0(x) \\ p_0(x) &=& c_n \end{array} \] To compute $p_n(x)$ we start from the last equation, and continue upwards to the first equation. This algorithm is also called Horner’s rule.

Write an implementation of Horner’s rule.

How many arithmetic operations are required by Horner’s rule?

Explain how you can adapt Horner’s rule to the Newton form in Equation 10.9.

Exercise 10.4 We interpolate the function $f(x) = x^2$ with a polynomial $p_3$ of degree $\leq 3$, in the points 0, 1, 2, and 3. What is $p_3(4)$?

Exercise 10.5 (Lagrange form)

We have the data

Write the cubic polynomial which interpolate in these points as \[\begin{align*} p_3(x)=&\,c_0(x-1)(x-3)(x-4)+c_1x(x-3)(x-4)\\ &+c_2x(x-1)(x-4)+c_3x(x-1)(x-3), \end{align*}\] and find the coefficients from the interpolation conditions. Dette This is called the Lagrange form of the interpolating polynomial.

Find the Newton form of the interpolating polynomial .

Verify that the solutions you found in (a) and (b) are equal.

Exercise 10.6 (Interpolation with a set of data)

We have the data These are points on the line $y=2-x$. Find the Newton form of the quadratic interpolating polynomial and compare. What is the difference?

Suppose we interpolate $f$ with polynomials of degree $\leq n$ in the points $x_0, \dots, x_n$. Show that if $f$ is a polynomial of degree $\leq n$, then the interpolant $p_n$ will be identical to $f$. Why does this explain the result in (a)?

Exercise 10.7 Suppose we have the data \[ (0,y_0), \quad(1,y_1), \quad (2,y_2), \quad (3,y_3) \tag{10.26}\] where $y_i=f(i)$ are values of an unknown function $f$. In this exercise we will find expressions for approximations to $f$ in different points by using cubic interpolation.

Find the line $p_1$ which interpolates the two midpoints in Equation 10.26, and use $p_1(3/2)$ as an approximation to $f(3/2)$. Show that \[ p_1(3/2)=\frac{1}{2}\bigl(y_1+ y_2\bigr). \]

Find the cubic polynomial $p_3$ which interpolates the data Equation 10.26, and use $p_3(3/2)$ as an approximation to $f(3/2)$. Show that \[p_3(3/2)=\frac{-y_0+9y_1+9y_2-y_3}{16}.\]

Exercise 10.8 (Taylor series and interpolation) Our basis for interpolation has been the knowledge of function values $f(x_0),...,f(x_m)$. Taylor polynomials can be seen as an alternative to this, with this knowledge replaced by $f(a),f'(a),...,f^{(n)}(a)$. Let the basis functions $\phi_i(x)$ be \[ \{1,x-a,(x-a)^2,...,(x-a)^n\} \] The polynomial we seek is then \[p(x)=c_0+c_1(x-a)+\cdots+c_n(x-a)^n,\] but now the interpolation conditions instead take the form \[ \begin{aligned} p(a) &= f(a) & p'(a) &= f'(a) & p''(a) &= f''(a) & \cdots & \cdots & p^{(n)}(a) &= f^{(n)}(a). \end{aligned} \tag{10.27}\] Show that $c_k=f^{(k)}(a)/k!$, so that we obtain the Taylor polynomial \[ f(a) + f'(a)(x-a)/1! + f''(a)(x-a)^2/2! + \cdots + f^{(n)}(a)(x-a)^n/n! \]

Exercise 10.9 The previous exercise shows that the interpolation conditions can be values of derivatives, rather than a set of function values. This exercise will show that we also can have a mix of the two.

Suppose that $f$ is differentiable in $x_1$, and that $x_0$, $x_1$, and $x_2$ are distinct. Find out if there exists a unique cubic polynomial $p_3$ so that \[\begin{align*} p_3(x_0)&=f(x_0), & p_3(x_1)&=f(x_1), & p_3'(x_1)&=f'(x_1), &p_3(x_2)&=f(x_2). \end{align*}\]

Can you generalise this result to cases where some of the derivatives in the interpolation points also are known? Can you relate this to Taylor polynomials?

Exercise 10.10 We approximate $f(x)=e^x$ with an interpolating polynomial $p_n$ in the points \[0,1/n,2/n,...,(n-1,n),1.\] How large must $n$ be in order for the error $|f(x)-p_n(x)|$ to be less than $0.001$ for all $x\in[0,1]$?

Exercise 10.11 Show that $\phi(t)$ in the proof for Equation 10.19 fulfills \[ \phi(x)=\phi(x_0)=\phi(x_1)=\cdots=\phi(x_n)=0\]

Exercise 10.12 We have seen that \[ Q_n(x) = (x-x_0)(x-x_1)\cdots(x-x_n) \] is central in the Newton form, and in the proof of Equation 10.19. In the next chapters we will differentiate and integrate this interpolating polynomial, and we will therefore need to defferentiate and integrate $Q_n$ as well.

Show that $Q^{(n+1)}/x)=(n+1)!$
A special case we will consider is when the $x_i$’s are a uniform partition, i.e., $x_i-x_{i-1}=h$ for all $i$. Compute $\int_{x_0}^{x_2}Q_1(x)\,dx$ and $\int_{x_0}^{x_3}Q_2(x)\,dx$ when the partition is uniform.

Hint

Integration by parts will be of help here.

Exercise 10.13 Fill out the code below so that it generalises the code developed in Section 10.4.

The input should be a function func, and a vector Nvals containing different values for $N$. The function and all the interpolants should all be plotted all together. Run the code for the listed code for the triangle wave, and compare the resulting plot with that of the square wave

the vector of plot points is usually much longer than the vector of interpolation points, although they here are denoted in the same way.↩︎
