1  Project: Image compression based on the singular value decomposition

The Singular Value Decomposition Theorem states as follows:

Theorem 1.1 (Singular Value Decomposition) If A is an m \times n nonzero, real matrix, it can be factored as A = U \, \Sigma \, V^T where U and V are orthogonal matrices (i.e., U^{-1}=U^T, V^{-1}=V^T) of dimensions m \times m and n \times n, respectively, and where \Sigma is an m \times n \, ‘’diagonal matrix’’ on the form \begin{equation*} \Sigma = \left( \begin{array}{cccc|cccc} \sigma_1 & 0 & \ldots & \ldots & \ldots & \ldots & \cdots & 0 \\ 0 & \sigma_2 & 0 & \ldots & \ldots & \ldots & \cdots & 0 \\ \vdots & 0 & \ddots & 0 & \vdots & \vdots & \vdots & 0 \\ \vdots & \vdots & 0 & \sigma_r & 0 & \vdots & \vdots & 0 \\ \hline 0 & 0 & 0 & 0 & 0 & 0 & 0 & 0 \\ \vdots & \vdots & \vdots & \vdots & \vdots & \vdots & \vdots & \vdots \\ 0 & 0 & 0 & 0 & 0 & 0 & 0 & 0 \\ \end{array} \right) \end{equation*} where r=\text{rank}(A). The diagonal elements \sigma_{1}, \ldots, \sigma_{r} are called the
singular values of A. These are strictly positive and ordered in such a way that The factorization A = U \Sigma V^T is called the SVD (Singular Value Decomposition) of A.

You are not required to read the proof for this in order to solve this project. Rather the purpose here is to analyse what kind of information the SVD captures, and illustrate how it provides a method for compressing images by reducing storage requirements.

Exercise 1.1 Let A = U \Sigma V^T be the SVD of the m \times n matrix A, and let \mathbf{u}_{j} and \mathbf{v}_{j} be the j-th column of U and V, respectively, i.e., \begin{align*} U &= \begin{pmatrix} \mathbf{u}_{1} & \mathbf{u}_{2} & \cdots & \mathbf{u}_{m}\end{pmatrix} & V &= \begin{pmatrix} \mathbf{v}_{1} & \mathbf{v}_{2} & \cdots & \mathbf{v}_n\end{pmatrix}. \end{align*}

  1. Show that U \Sigma = \begin{pmatrix} \sigma_{1} \mathbf{u}_{1} & \sigma_{2}\mathbf{u}_{2} & \cdots & \sigma_{r} \mathbf{u}_{r} & \mathbf{0} & \cdots & \mathbf{0}\end{pmatrix} where the number of zero-vectors is n-r.
  1. Recall that if B is an m \times p matrix, and C is an p \times n matrix, then the matrix product BC can be written as
    BC = \sum_{j=1}^{p}\, \texttt{col}_{j}(B) \, \texttt{row}_{j}(C). Use this and (a) to show that A = \sum_{j=1}^r \, \sigma_j \, \mathbf{u}_{j}\mathbf{v}_{j}^T. \tag{1.1}

Comment: (b) shows that only the r first columns of U and V matter in the SVD A = U \Sigma V^T. Note also that all terms in the sum Equation 1.1 are rank 1 matrices, since \mathbf{u}\mathbf{v}^T = [v_{1}\mathbf{u} \quad v_{2}\mathbf{u} \quad \ldots \quad v_{n}\mathbf{u}], so that \texttt{rank}( \mathbf{u}\mathbf{v}^T ) = 1 when \mathbf{u} and \mathbf{v} are both nonzero. (b) thus also shows that a rank r matrix A can be written as a sum of r rank one matrices.

1.1 Some useful Python commands

We will consider an application of the SVD to image analysis. An image can simply be considered as a matrix, a rectangular grid where each point in the grid corresponds to an element in the matrix. In image analysis one rather uses the term pixel, instead of grid point.

In gray tone images every pixel has an associated value measuring its intensity. Pixel values in such images are often stored as integers between 0 and 255, where 0 corresponds to black and 255 corresponds to white. Colour images on the other hand are often stored in the rgb-format, where every pixel has three components, one for red (r), one for green (g), and one for blue (b). All possible colours can be produced by combining these three base colours in different ways. This means that we need 3 different matrices to store an image in the rgb format. In this project we shall stick to gray tone images, so that one matrix is enough to store the image.

Below is a description of some Python commands that may be useful. A is here a two-dimensional array. We start by importing the packages we need:

import matplotlib.pyplot as plt
import numpy as np

The function in returns the rank of A, and can be invoked in two ways:

r=np.linalg.matrix_rank(A)
r=np.linalg.matrix_rank(A,tol=epsilon)

The second line here requires some explanation. We are used to finding the rank by row reducing the matrix, and counting the number of pivot columns. The entries in a matrix are sensitive to roundoff errors, however. The effect of these can be that, after row reduction, it may look like the matrix has full rank, even if this is not the case. Instead we can use the fact that the rank equals the number of singular values greater than 0. Python applies this procedure, and assumes that \sigma_j > 0 if \sigma_j > \epsilon for a given tolerance \epsilon > 0. This tolerance is set on the second line above ().

The function in the module returns the singular value decomposition of , i.e., it returns matrices U, V, and a vector S so that A = U \Sigma V, where \Sigma is diagonal with the entries of S on the diagonal. Note the difference from the mathematical definition in that the matrix V is not transposed!

We also have the following three functions in the module

A = np.double(plt.imread(filename,format=None))
plt.imwrite(filename,A,format=str)
plt.imshow(img,cmap='gray')

On the first line an image is read from a given file in a given format, and stored it in the matrix A. Note the conversion to here, which is needed. On the second line the image stored in A is written to a given file, with the given format (to print images you have generated, use this command first, then send the resulting file to the printer). On the third line the matrix A is displayed as an image. The named parameter states that the image should be interpreted as a grayscale image (with values between 0 and 255).

Exercise 1.2 We continue using the notation from Exercise 3.1. For 1 \leq k \leq r we define A^{(k)} = \sum_{j=1}^k \sigma_j \mathbf{u_j}\mathbf{v_j}^T. \tag{1.2} A^{(k)} has rank k and can thus be thought of as a rank k approximation to A. How many terms we need to include, i.e., how big k must be for an acceptable approximation, will of course depend on the singular values, and how quickly they tend to 0.

  1. Write a function svdApprox(A,k) which takes an m \times n matrix A, and k, as input, computes the SVD of the matrix, and returns the matrix A^{(k)} in Equation 1.2. If k > r =\text{rank}(A) the function should provide a suitable error message.
  1. Load the Marilyn Monroe image provided in this project into a matrix A. Check that A is a 256 \times 256 matrix, and compute its rank with help of the function linalg.matrix\_rank}. Also compute the rank with tolerances 0.001, 0.01, 0.1, and 1.
  1. Use the function you implemented in (a) to display the image corresponding to A^{(k)} for k = 8 and k=32.
  1. Since the rank of the image matrix equals the number of nonzero singular values, a low rank means that we can represent the matrix with just a few values. Can you say anything about the rank of the matrix below, which also is displayed as an image?
A = np.array([\
[0,32,64,96,128,160,192,224],\
[0,32,64,96,128,160,192,224],\
[0,32,64,96,128,160,192,224],\
[0,32,64,96,128,160,192,224],\
[0,32,64,96,128,160,192,224],\
[0,32,64,96,128,160,192,224],\
[0,32,64,96,128,160,192,224],\
[0,32,64,96,128,160,192,224]])

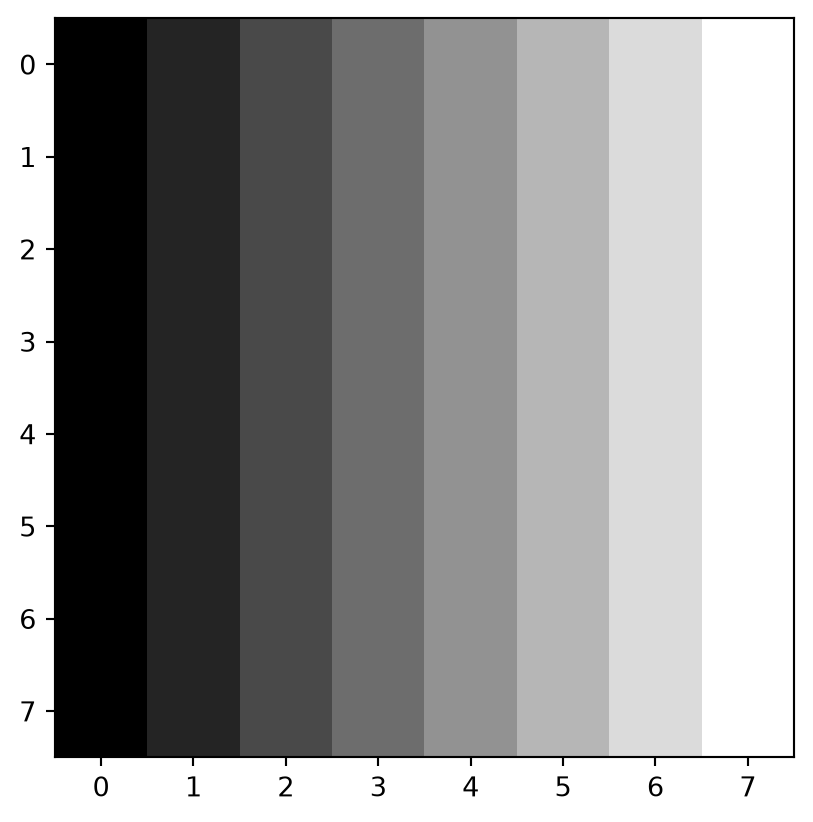

plt.imshow(A,cmap='gray')

Exercise 1.3 The singular values are listed in decreasing order with the biggest first. Thus, the most ‘’important’’ information is found in the first terms in the sum in Equation 1.1.

  1. Plot the singular values of the matrix from the Marilyn Monroe image (\sigma_j as a function of j).
  1. Construct a random image of the same size, and with pixel values in the same interval as the Marilyn Monroe image. This you can do by writing
B = (255*np.random.rand(256,256)).round()

Plot the singular values of the matrix of the random image together with the singular values of the matrix of the Marilyn Monroe image. Compare how the singular values decrease for the two matrices, and try to explain what you see.

Exercise 1.4 Every term in the sum Equation 1.2 needs two vectors, in addition to one singular value. To store the matrix A^{(k)} we therefore only need to store the k first vectors in both matrices U and V, as well as the k first singular values.

  1. How many numbers do you need to store a rank k SVD approximation to an image of size m\times n?
  1. How big k is needed in order for the rank k SVD approximation to be visually as good as the original? Experiment with Python.
  1. The relative error between the matrices A and A^{(k)} is defined as \begin{equation*} e_{rel} = \frac{\| A - A^{(k)} \|}{ \|A\|}, \end{equation*} where the norm of an m \times n matrix B = [b_{i,j}] is defined by \| B \| = \sqrt{ \sum_{i=1}^m \sum_{j=1}^n {b_{i,j}}^2 }. Implement a function relError(A,AK) which computes the relative error between the two matrices A and AK. What is the relative error between the original image and the approximation you chose in (b)?
  1. in Exercise 3.2(c) you reconstructed the Marylin Monroe image from the 8 first singular components, i.e., from A^{(8)}. Try now to reconstruct the same image by using all singular values the 8 first singular components, i.e., by using the matrix \sum_{j=9}^r \sigma_j \mathbf{u}_{j}\mathbf{v}_{j}^T, where r = \text{rank}(A). Look at both images, and compute the relative error for each of them. Is the ``visual’’ error in both images acceptable?

Exercise 1.5 We continue using the notation from Exercise 3.1.

  1. Let 1 \leq k \leq r. Show that \{ \mathbf{u}_{1}, \, \ldots \, , \mathbf{u}_{k} \} is a basis for Col A^{(k)}. This shows in particular that A^{(k)} has rank k (as mentioned in Exercise 3.2). Note that this basis is orthonormal.
  1. What is the SVD of A^T ? Display the image corresponding to A^T when A is the Marylin Monroe image.
    Describe the matrix corresponding to the image where Marylin has been rotated med 90 degrees counterclockwise.
  1. Explain that \{ \mathbf{v}_{1}, \, \ldots \, , \mathbf{v}_{r} \} is a basis for Row(A)= Col(A^T). Note that this basis is orthonormal.
